Secondary Valve Body Spring Specifications

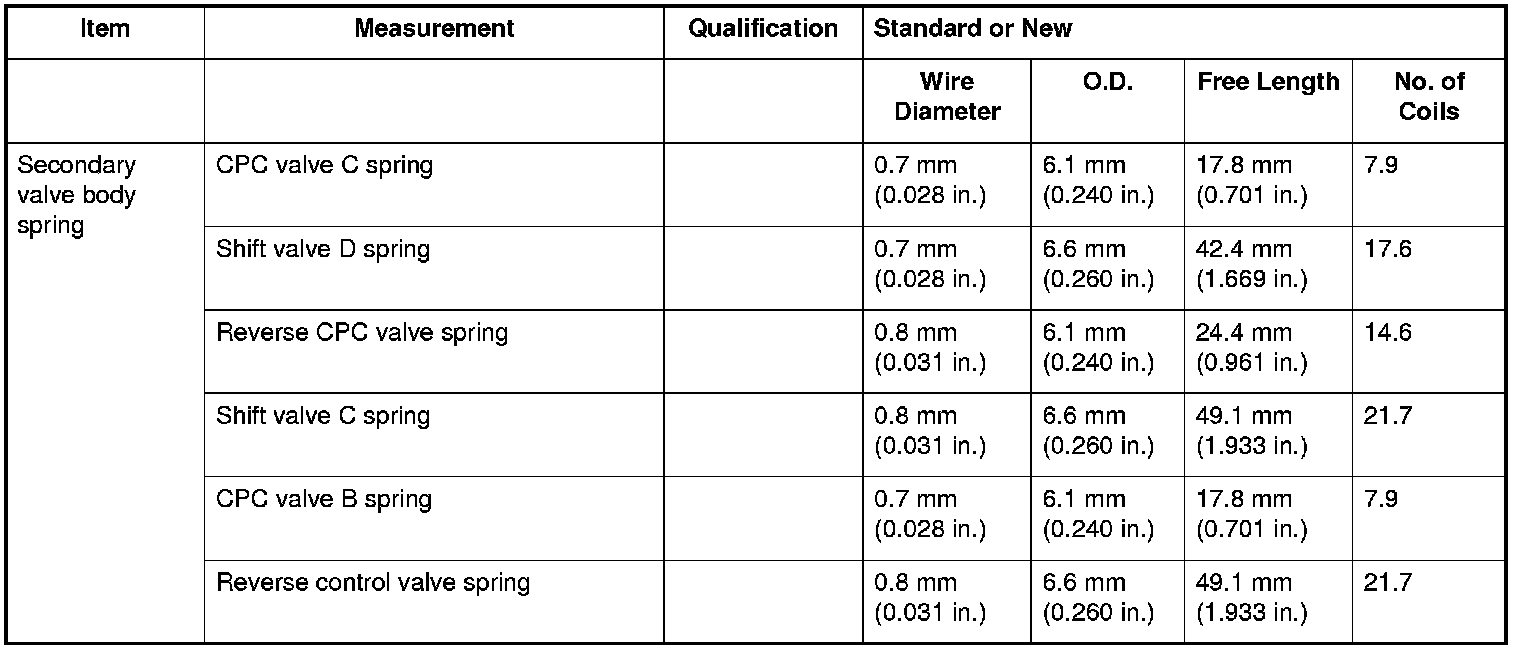

Secondary valve body spring Specifications

Secondary valve body spring Secondary Valve Body Disassembly, Inspection, and Reassembly
