Transmission Selector Control Shaft Bearing Replacement

Transmission Selector Control Shaft Bearing Replacement

Special Tools Required

- Remover shaft 07936-GE0A000
- Sliding hammer weight 07936-371020A
- Driver handle, 15 x 135L 07749-0010000
- Attachment, 22 x 24 mm 07746-001A800

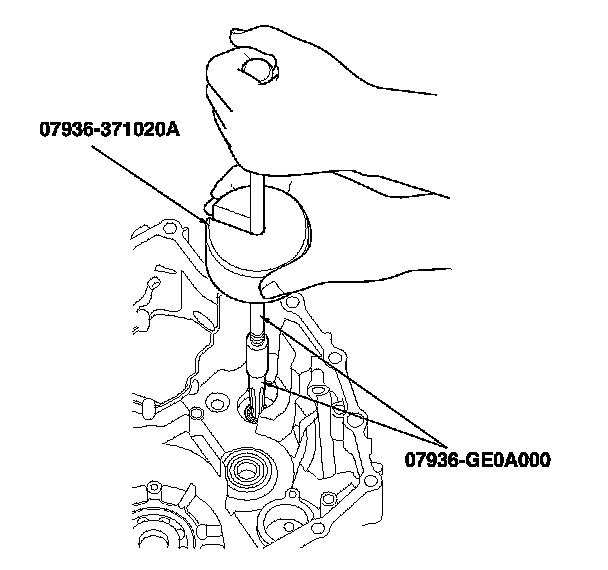

1. Remove the control shaft bearing from the transmission housing using the remover head the remover shaft and the sliding hammer weight.






2. Install a new bearing in the transmission housing using the driver handle and the 22 x 24 mm attachment.
