Torque Converter Housing Countershaft Bearing Replacement

Torque Converter Housing Countershaft Bearing Replacement

Special Tools Required

- Adjustable bearing puller, 20-40 mm 07736-A01000B or 07736-A01000A
- Driver handle, 15 x 135L 07749-0010000
- Attachment, 78 x 80 mm 07NAD-PX40100

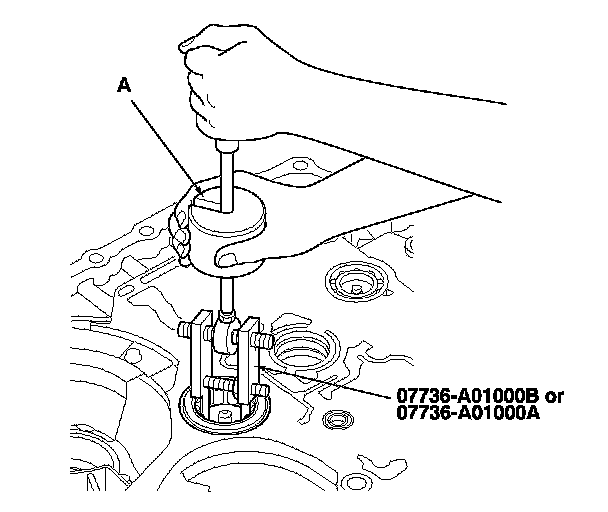

1. Remove the countershaft bearing from the torque converter housing using the 20-40 mm adjustable bearing puller and a commercially available 3/8"-16 slide hammer (A).

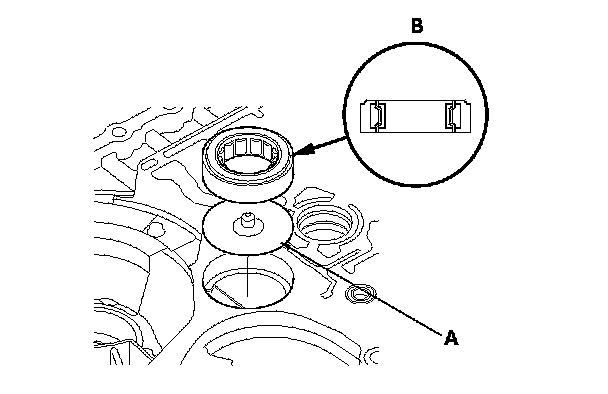

2. Install the ATF guide plate (A) into the torque converter housing, then install a new bearing (B) in the direction shown.

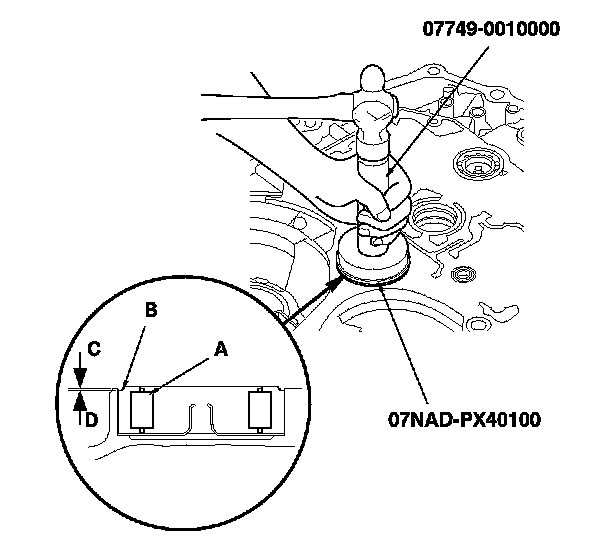

3. Install the bearing (A) in the torque converter housing using the driver and the 78 x 80 mm attachment; install the bearing outer notch-cut (B) to a depth (C) of 0-0.03 mm (0-0.001 in.) below the torque converter housing surface (D).
