1st Clutch Hub Replacement

1st Clutch Hub Replacement

Special Tools Required

- Driver handle, 15 x 135L 07749-0010000
- Driver attachment, 43.5 mm 07947-6340500
- Attachment, 78 x 90 mm 07GAD-SD40101

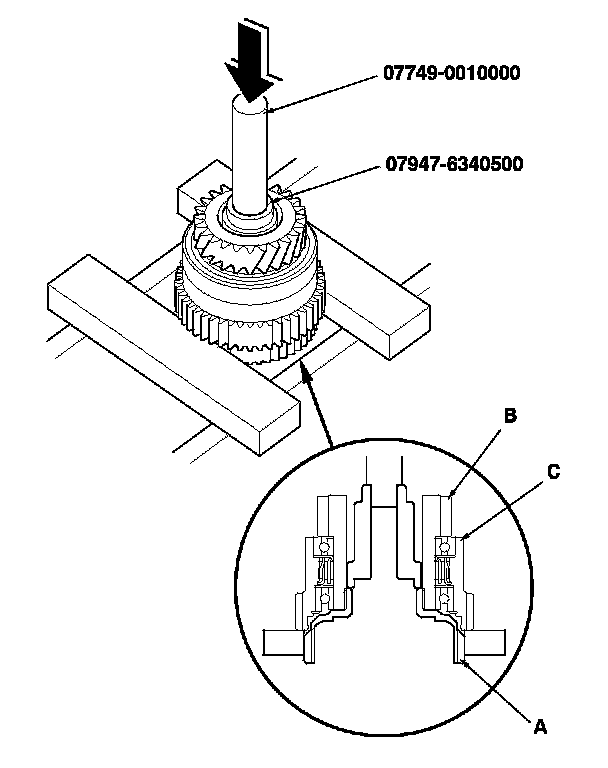

1. Remove the 1st-hold clutch hub (A) from 1st gear (B) using the driver handle, the 43.5 mm driver attachment, and a press.

2. Remove the 1st clutch hub (C) from 1st gear.

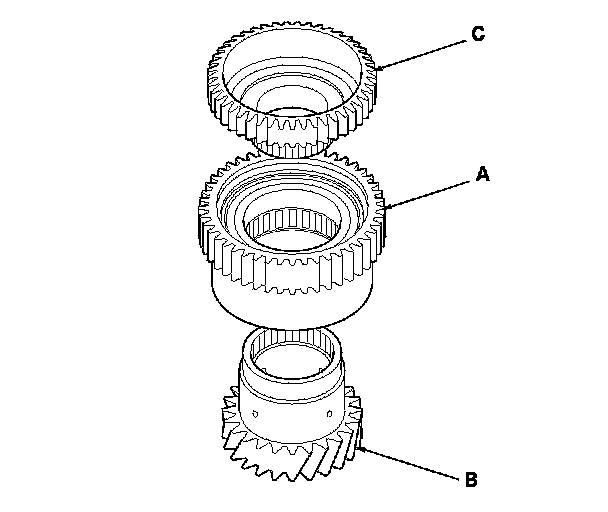

3. Install a new 1st clutch hub (A) over 1st gear (B), and install the 1st-hold clutch hub (C) in 1st gear.

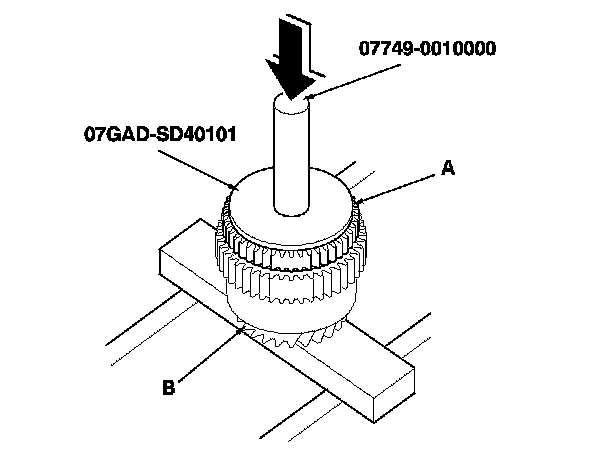

4. Install the 1st-hold clutch hub (A) in 1st gear (B) using the driver, the 78 x 90 mm attachment, and a press.
