A/T Differential Carrier Bearing Replacement

A/T Differential Carrier Bearing Replacement

Special Tools Required

- Attachment, 45 x 55 mm 07MAD-PR90100
NOTE:

- The bearing and the outer race should be replaced as a set.

- Inspect and adjust the carrier bearing preload whenever the bearing is replaced.

- Check the bearing for wear and rough rotation. If the bearing is OK, removal is not necessary.

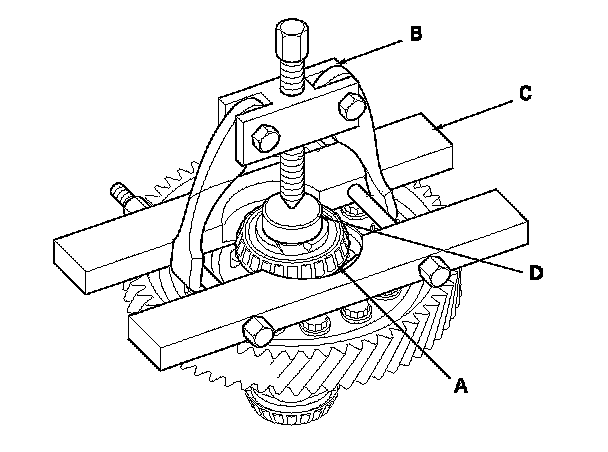

1. Remove the carrier bearing (A) with a commercially available bearing puller (B), a bearing separator (C), and a spacer (D).

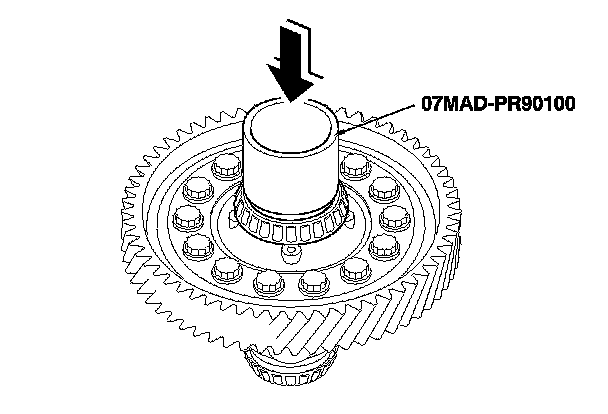

2. Install new carrier bearings using the 45 x 55 mm attachment and a press.
NOTE:

- Press the bearing on until it bottoms.

- Use the small end of the 45 x 55 mm attachment to install the bearings.

- Press the bearing on securely so there is no clearance between the bearing and the differential carrier.
