System Specifications

Timing Components


Belt Tensioner

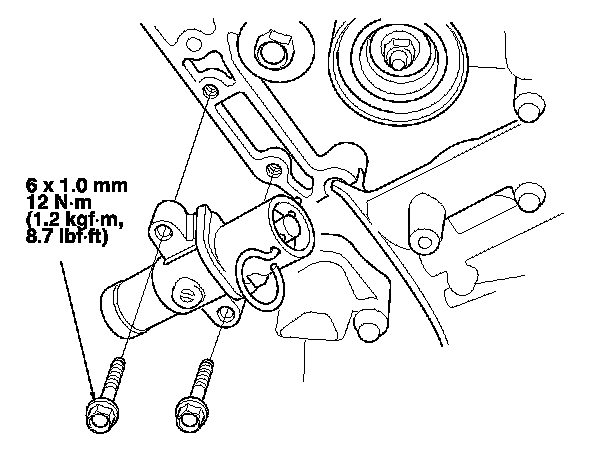

Tightening torque 12 Nm (1.2 kgf-m, 8.7 ft lbs)





Belt Adjuster

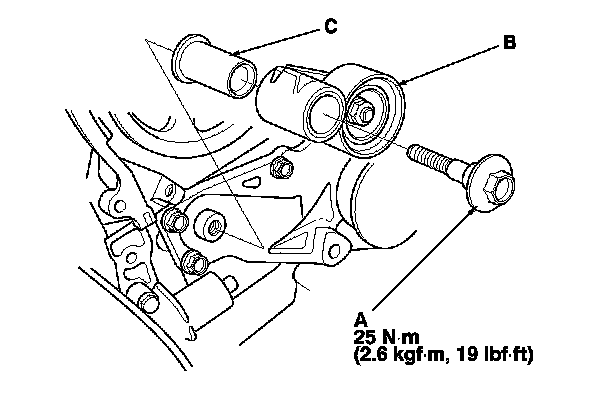

Tightening torque 25 Nm (2.6 kgf-m, 19 ft lbs)





Idler Pulley

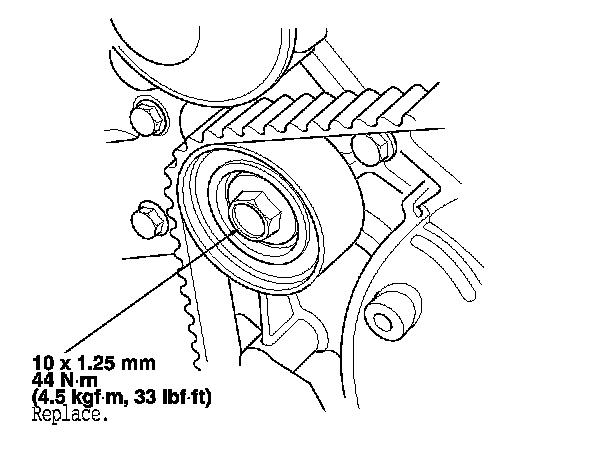

Tightening torque 44 Nm (4.5 kgf-m, 33 ft lbs)





Timing Cover

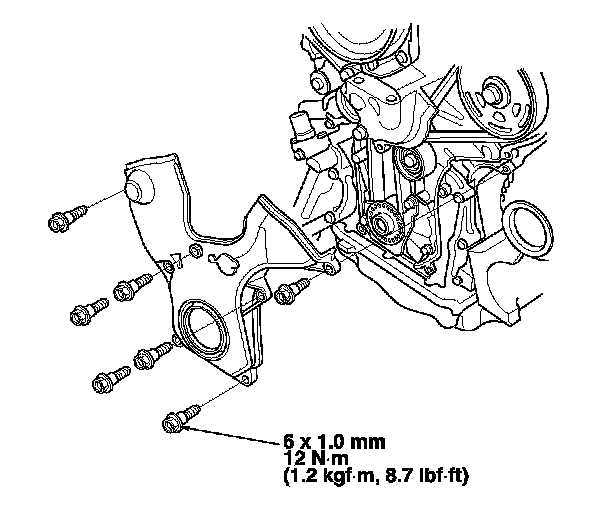

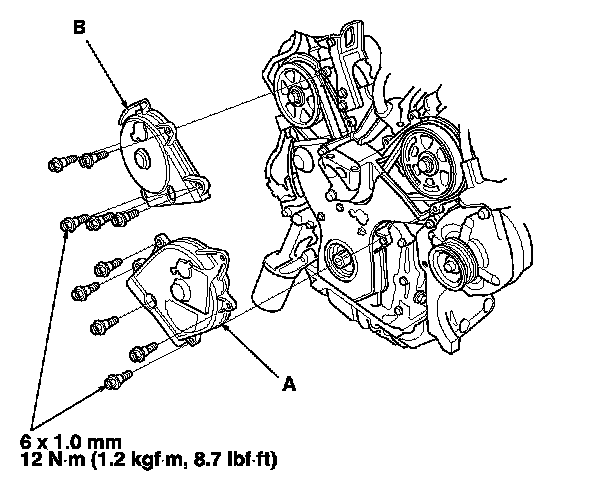

Tightening torque 12 Nm (1.2 kgf-m, 8.7 ft lbs)








Crankshaft Pulley
Tightening torque 64 N-m (6.5 kgf-m, 47 lbf-ft)

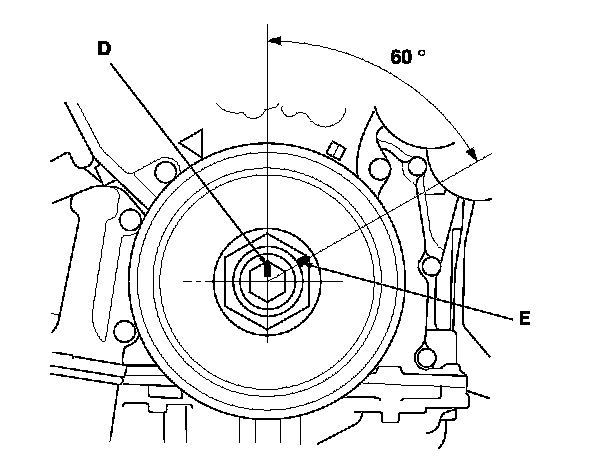

Tighten additional 60 °
