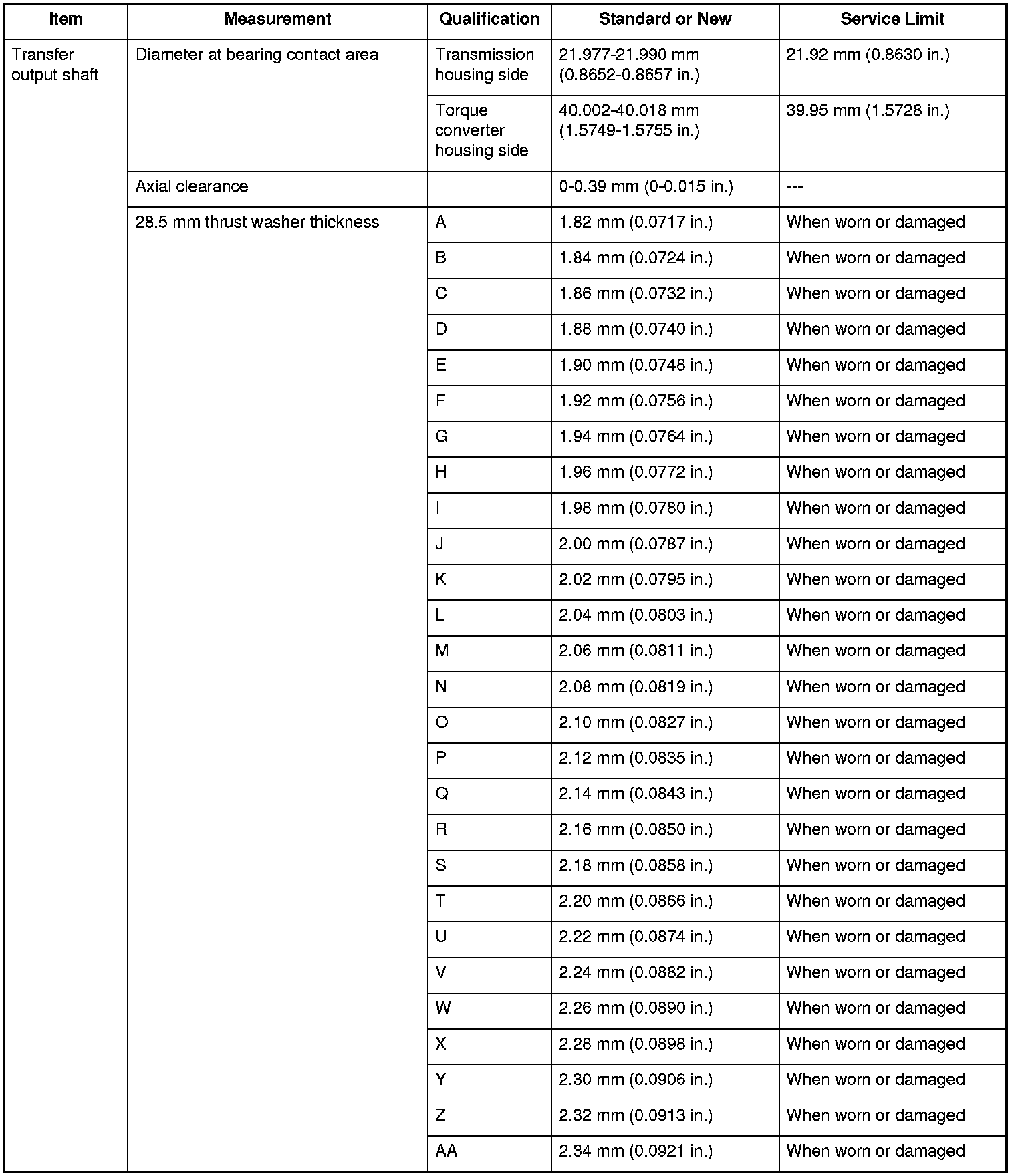

Transfer Output Shaft Specifications




Transfer output shaft Specifications

Transfer output shaft
