Home >> Acura >> 2009 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> Standards and Service Limits >> Main Valve Body Spring Specifications

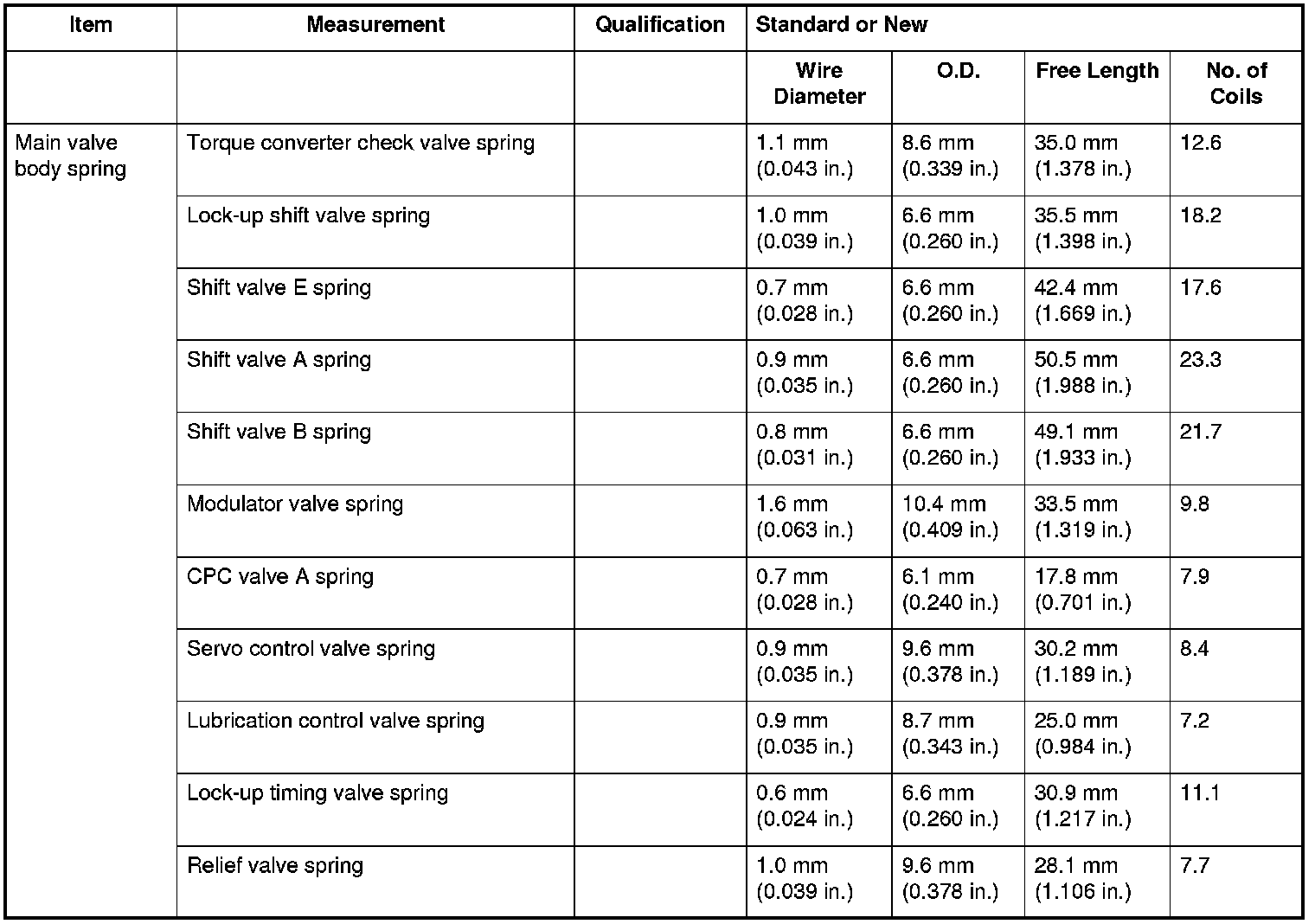

Main Valve Body Spring Specifications




Main valve body spring Specifications

Main valve body spring Main Valve Body Disassembly, Inspection, and Reassembly
