FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Acura
>>
2009
>>
TL AWD V6-3.7L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
Standards and Service Limits
>>

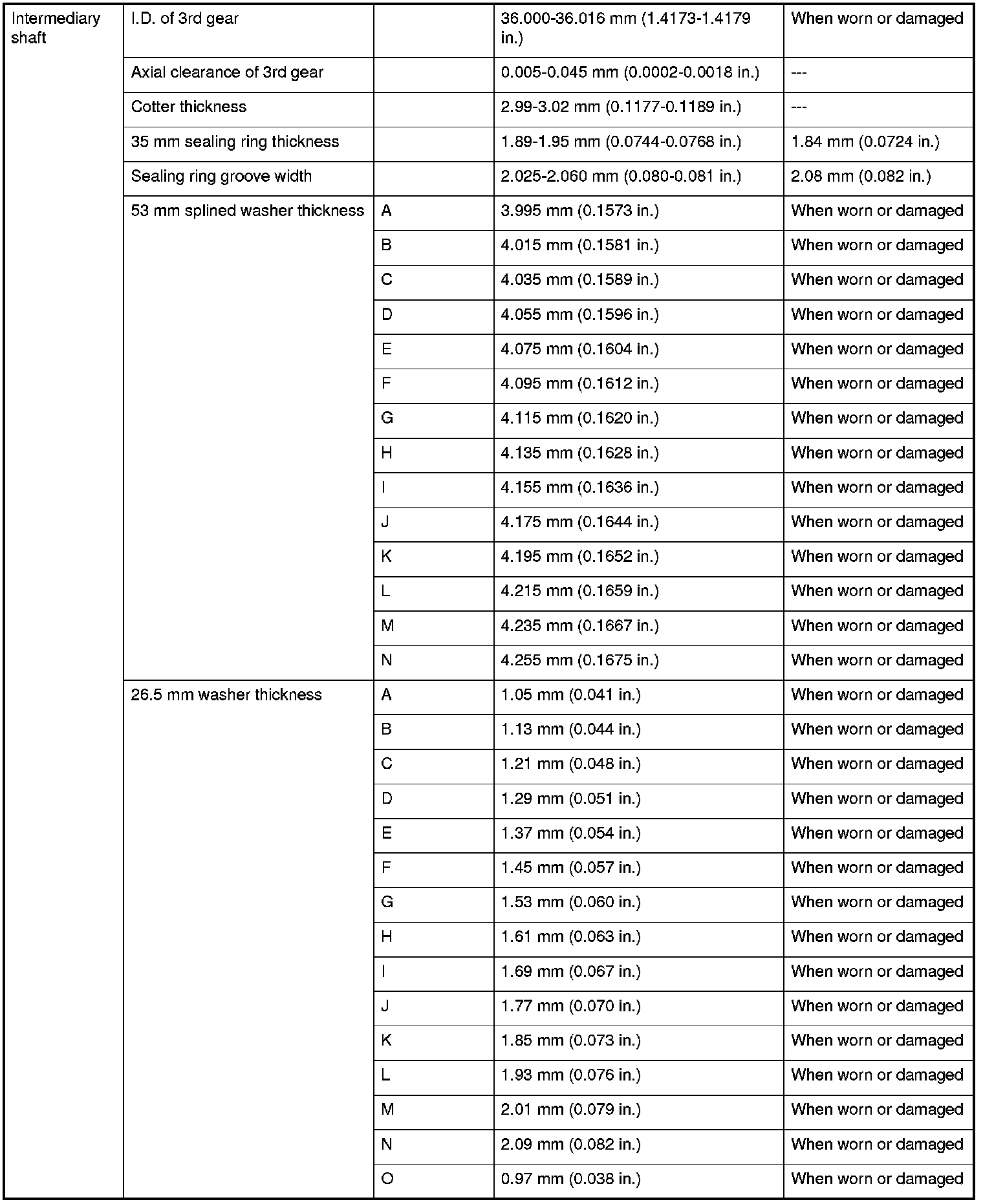

Intermediary Shaft Specifications
Intermediary Shaft Specifications
Intermediary shaft Specifications
Intermediary shaft
