Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
Standards and Service Limits
>>

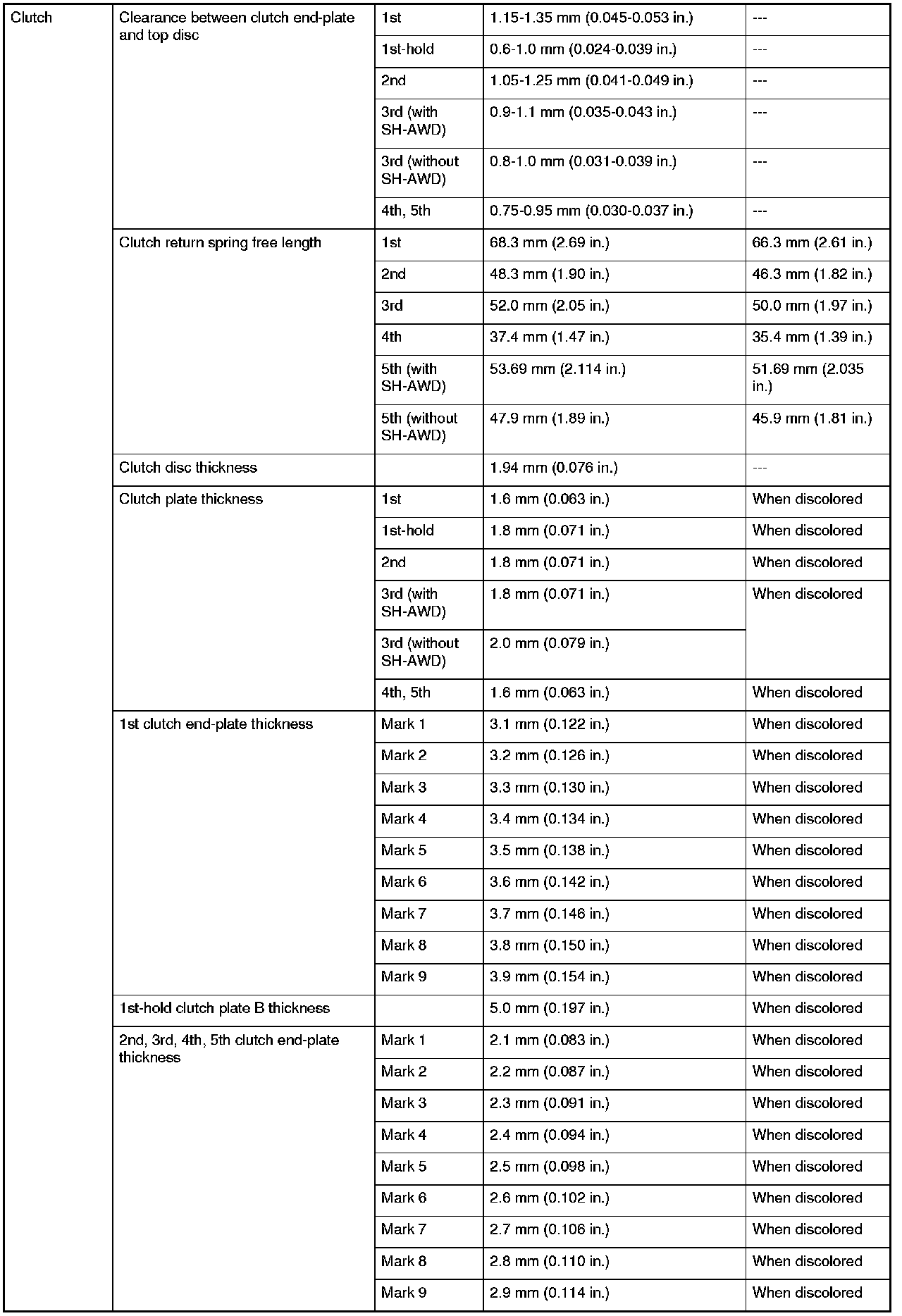

Clutch Specifications
Clutch Specifications
Clutch Specifications
Clutch
