Home >> Acura >> 2009 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> Standards and Service Limits >> Accumulator Body Spring Specifications

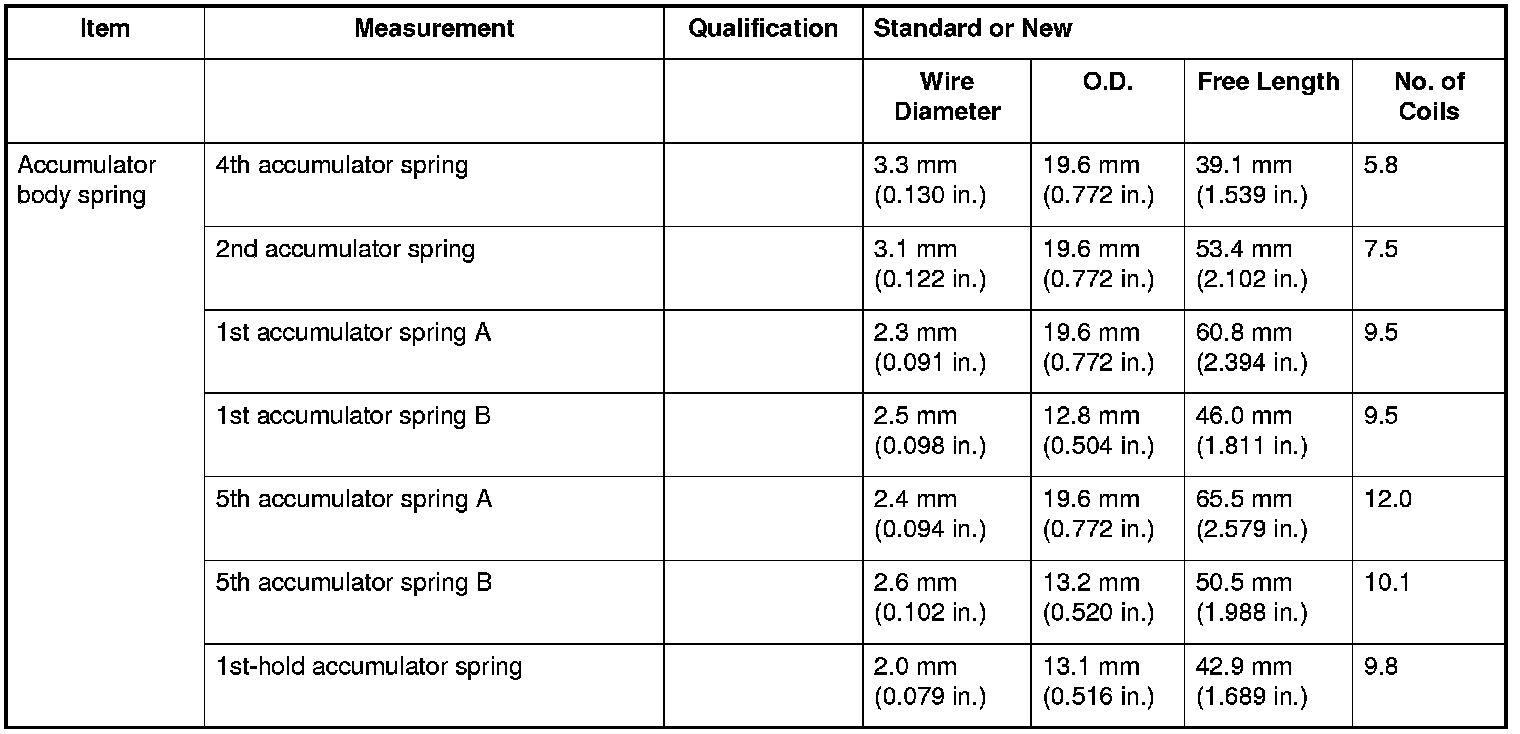

Accumulator Body Spring Specifications




Accumulator body spring Specifications

Accumulator body spring Accumulator Body Disassembly, Inspection, and Reassembly
