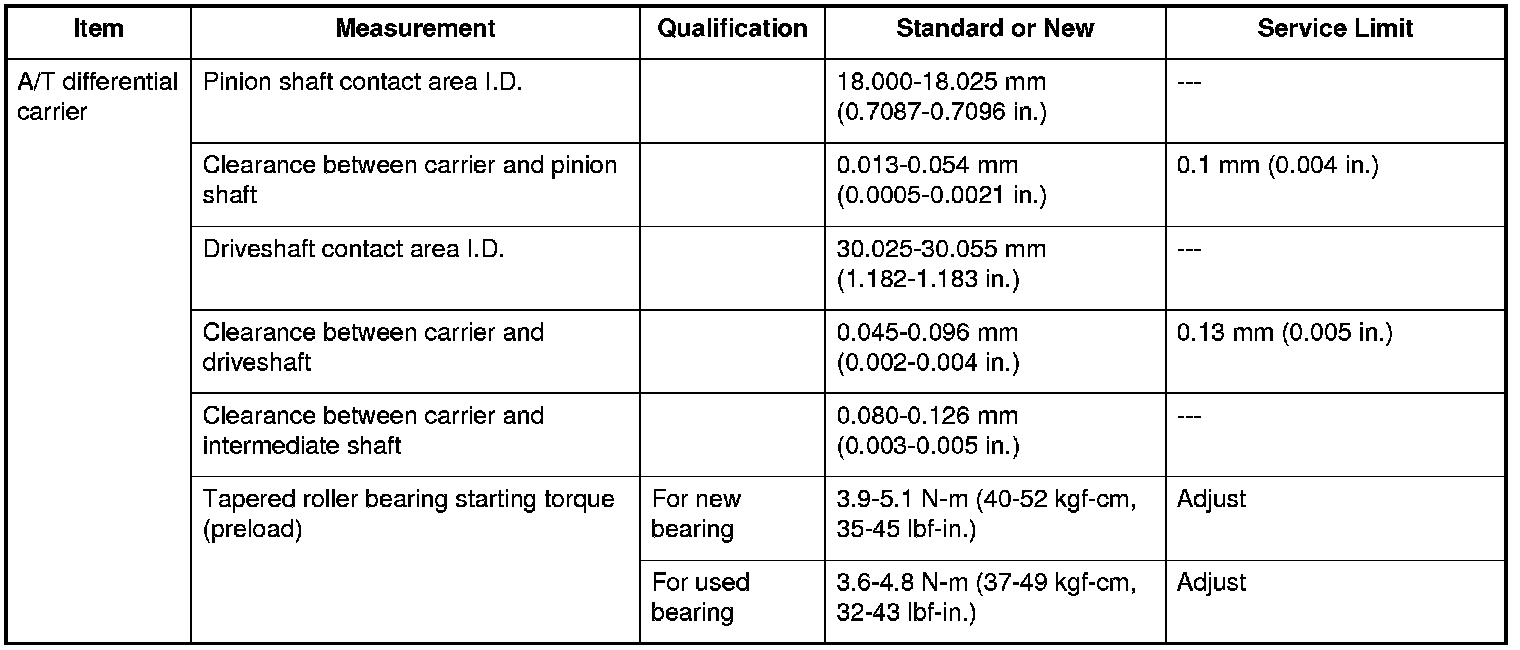

A/T differential Carrier Specifications
A/T differential Carrier Specifications
A/T differential carrier Specifications
A/T differential carrier
