Headlamp Washer Switch: Service and Repair

Headlight Washer Switch Test/Replacement

Canada models with SH-AWD

1. Remove the driver's dashboard undercover. Driver's Dashboard Undercover Removal/Installation

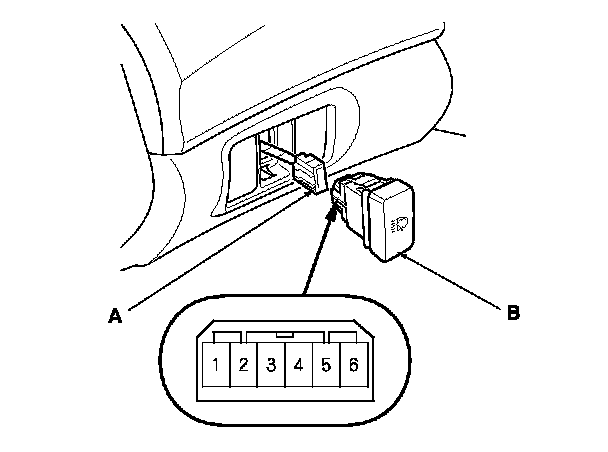

2. Disconnect the 6P connector (A) from the headlight washer switch (B).

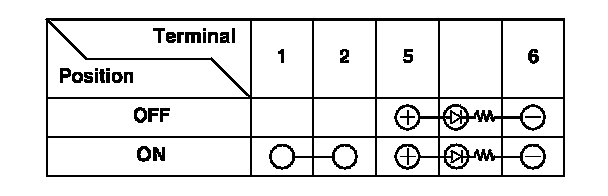

3. Check for continuity between the terminals in each switch position according to the table.
NOTE: Make sure the correct test lead (+ or -) is placed on the terminal.

4. If the continuity is not as specified, replace the switch.

5. Install the switch in the reverse order of removal.
