Ignition Switch: Service and Repair

Ignition Switch Replacement

SRS components are located in the area. Review the SRS component locations Locations and precautions and procedures Service and Repair before doing repairs or servicing.

1. Do the battery terminal disconnection procedure. Procedures

2. Remove the steering column covers. Service and Repair

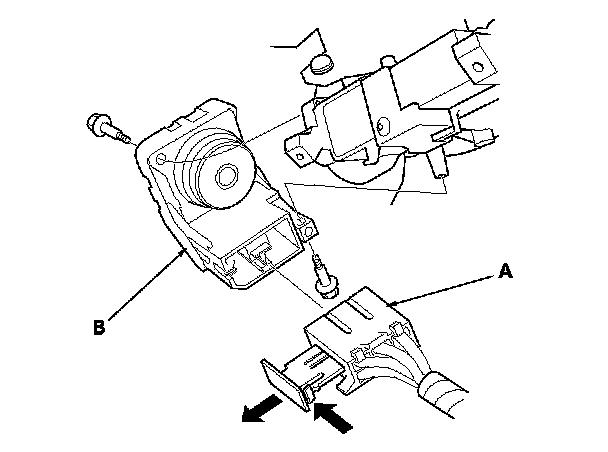

3. Disconnect the 5P connector (A) from the ignition switch (B).

4. Remove the two screws and the ignition switch.

5. Install the parts in the reverse order of removal.

6. Do the battery terminal reconnection procedure. Procedures
