Front Impact Sensor Replacement

Front Impact Sensor Replacement

Removal

1. Do the battery terminal disconnection procedure, Procedures then wait at least 3 minutes before starting work.

2. Remove the front bumper. Front Bumper

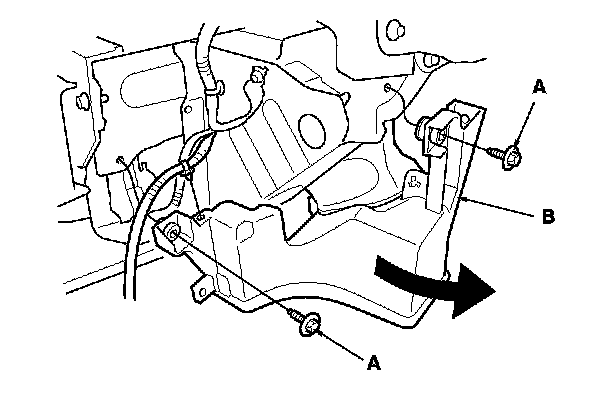

3. Left side; remove the bolts (A), then release the intake air resonator (B).

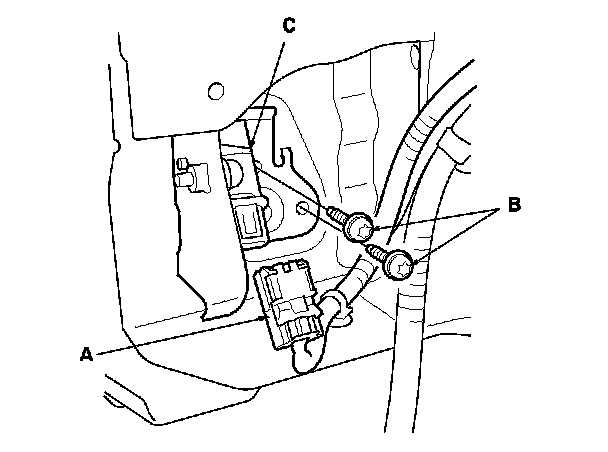

4. Disconnect the left or right engine compartment wire harness 2P connector (A).

5. Remove the TORX bolts (B) using a TORX T30 bit, then remove the front impact sensor (C).






Installation

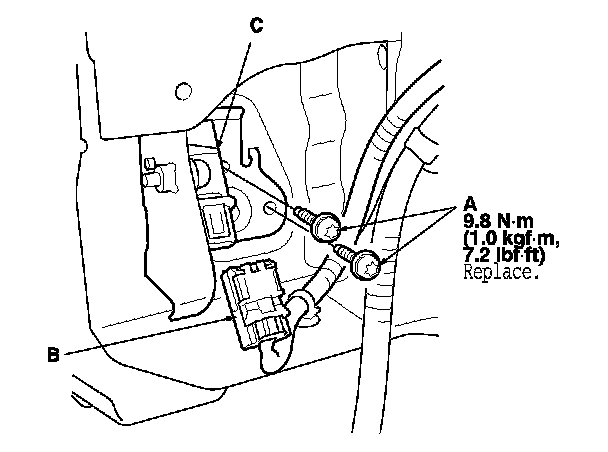

1. Install the front impact sensor with new TORX bolts (A), then connect the left or right engine compartment wire harness 2P connector (B) to the front impact sensor (C).

2. Do the battery terminal reconnection procedure. Procedures

3. Clear any DTCs. Initial Inspection and Diagnostic Overview

4. Confirm proper SRS operation: Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode; the SRS indicator should come on for about 6 seconds and then go off.

5. Reinstall all removed parts.
