Hazard Warning Switch: Service and Repair

Hazard Warning Switch Test/Replacement

1. Remove the center vent. Dashboard Center Vent Removal/Installation

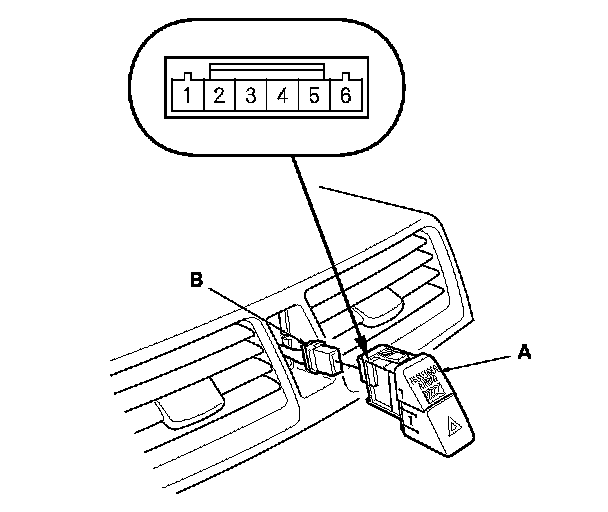

2. Push out the hazard warning switch (A) from behind the vent panel.

3. Disconnect the 5P connector (B) from the hazard warning switch.

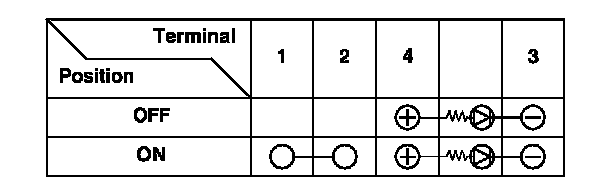

4. Check for continuity between the terminals in each switch position according to the table.

5. If the continuity is not as specified, replace the hazard warning switch.

6. Install the switch in the reverse order of removal.
