Fuel Door Switch: Service and Repair

Fuel Fill Door Opener Switch Test/Replacement

1. Remove the driver's door panel. Front Door Panel Removal/Installation

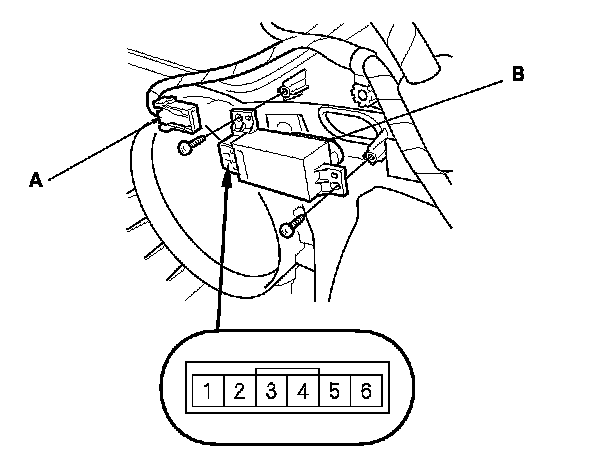

2. Disconnect the 6P connector (A) from the fuel fill door opener switch (B).

3. Check for continuity between terminals No. 1 and No. 3.
- With the switch pushed, there should be continuity.

- With the switch released, there should be no continuity.

4. If the continuity is not as specified, remove the two screws and replace the switch.
