SRS Unit Replacement

SRS Unit Replacement

Removal

1. Do the battery terminal disconnection procedure Procedures, then wait at least 3 minutes before starting work.

2. Remove the center console. Center Console Removal/Installation

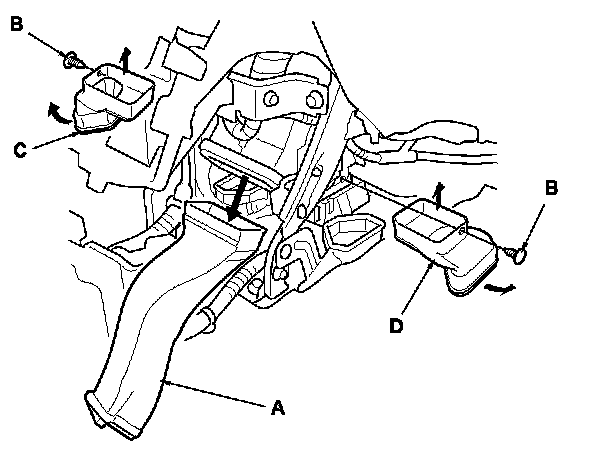

3. Pull down on the center heater joint duct (A) to remove it.

4. Remove the clips (B), then remove the left and right heater ducts (C, D).

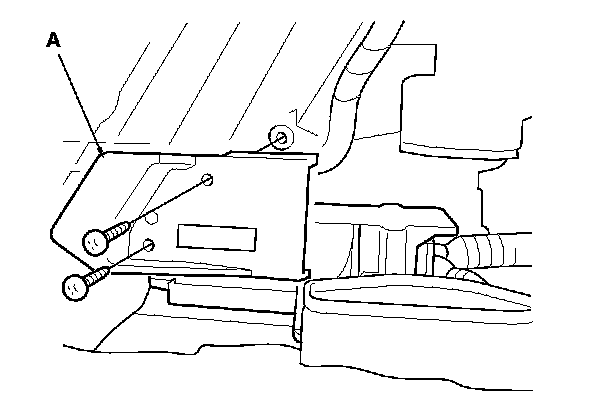

5. Remove the two screws from the driver's side center console clip bracket (A), then remove the bracket.

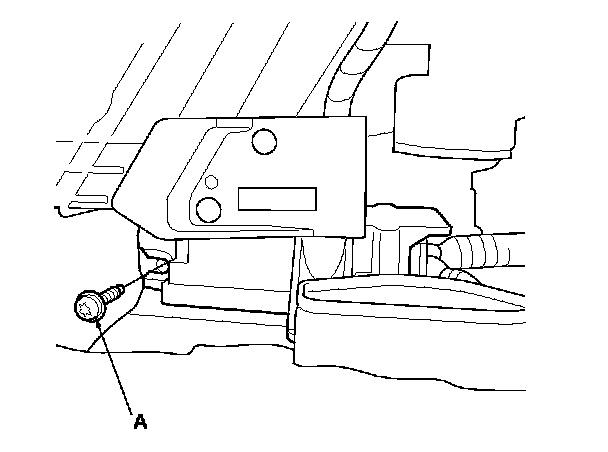

6. Using a TORX T30 bit, remove the TORX bolt (A).

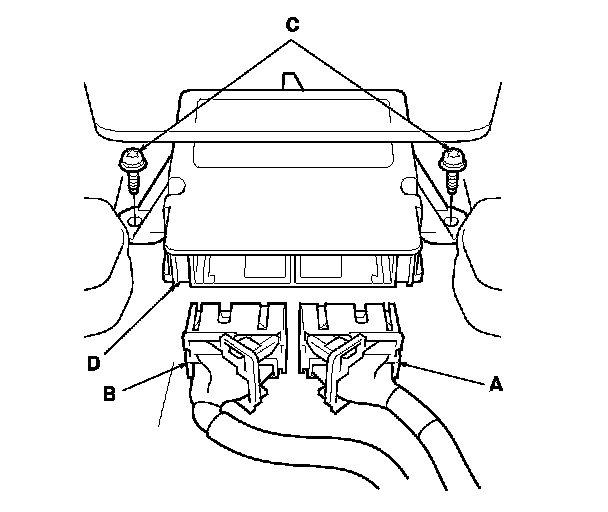

7. Disconnect SRS unit connectors A (39P) and B (39P), and remove the TORX bolts (C) using a TORX T30 bit, then remove the SRS unit (D) from the driver's side.






Installation

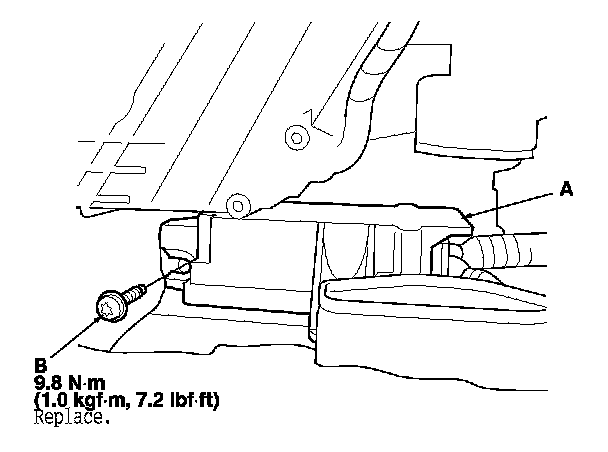

1. Install the SRS unit (A) with a new TORX bolt (B),using a TORX T30 bit.
NOTE: Be sure the SRS unit is sitting squarely against it's bracket before torquing the TORX bolt.

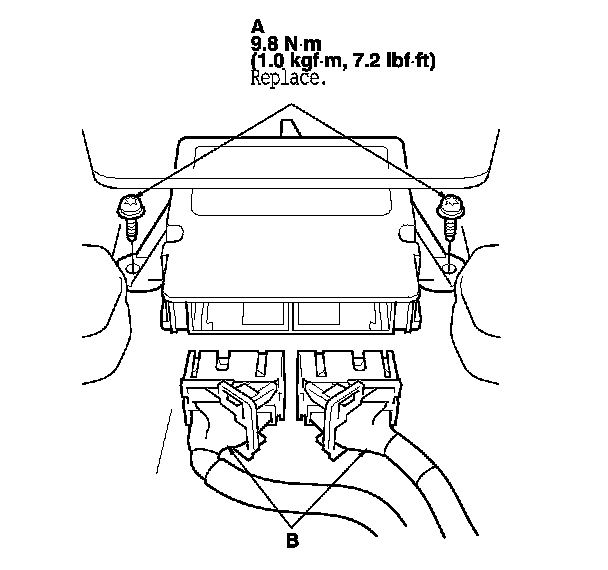

2. Install the new TORX bolts (A) using a TORX T30 bit.

3. Connect the connectors (B) to the SRS unit; push them into position until they click and the lever locks are fully secured. Service and Repair






4. Install the driver's side center console clip bracket (A) with two screws.






5. Install the left and right heater joint ducts (A, B), then install the clips (C).

6. Install the center heater joint duct (D).

7. Do the battery terminal reconnection procedure. Procedures

8. Make sure the SRS unit has the latest software. If it does not have the latest, update the software in the SRS unit. SRS Unit Update

9. Calibrate the ODS unit. ODS Unit Initialization

10. Do the ODS unit operation check. ODS Unit Operation Check

11. Confirm proper SRS operation: Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode; the SRS indicator should come on for about 6 seconds and then go off.

12. Reinstall all removed parts.
