Front Passenger's Weight Sensor Output Check After a Vehicle Collision

1. Position the front passenger's seat to the rear most position, and adjust the seat-back to the forward most position. Do not move the seat from this position.

2. Drive the vehicle, accelerate to 20 mph (36 km/h), then stop on level ground.

3. Make sure the ignition switch is in LOCK (0), or press the engine start/stop button to select the OFF mode.

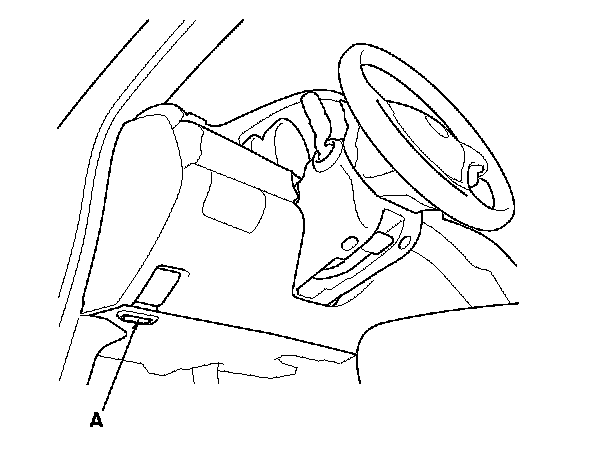

4. Connect the HDS to the data link connector (DLC) (A).

5. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

6. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate, troubleshoot the DLC circuit. Testing and Inspection

7. From the SRS inspection menu, select Seat Weight Sensor, then Misc test, then SEAT OUTPUT CHK and follow the prompts until the ODS operation check has been completed.
