ODS Unit Replacement

ODS Unit Replacement

Removal

1. Do the battery terminal disconnection procedure, Procedures then wait at least 3 minutes before starting work.

2. Remove the front passenger's seat assembly. Front Seat Removal/Installation

3. Pull out the seat-back cover/pad as needed. Front Seat-Back Cover Replacement

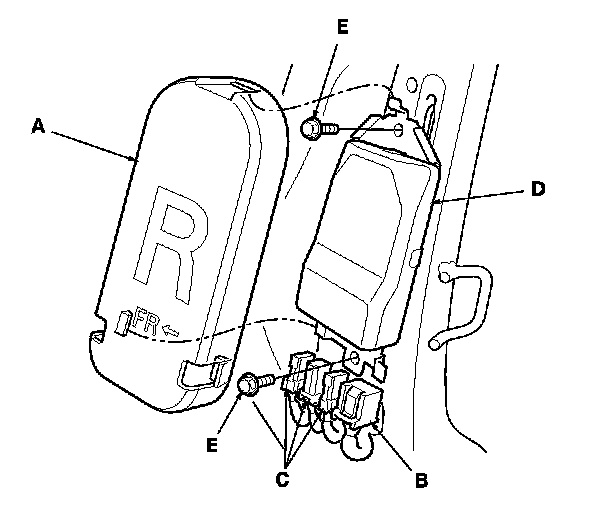

4. Remove the cover (A), then disconnect the ODS unit 18P connector (B) and ODS sensor connectors (C) from the ODS unit (D).

5. Remove the two bolts (E), and the ODS unit.






Installation

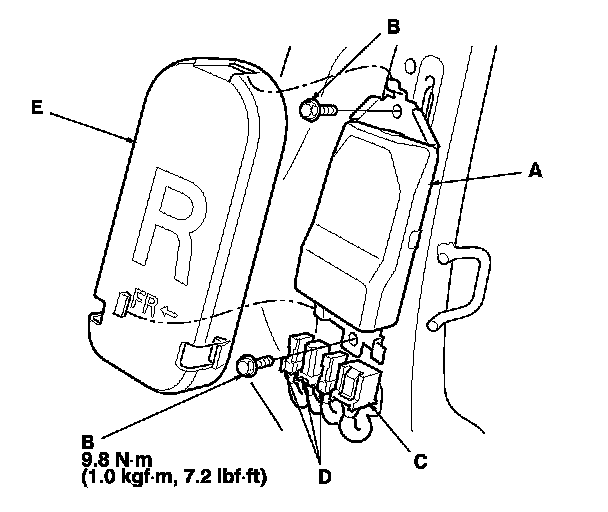

1. Place the ODS unit (A) on the seat-back frame. Tighten the two bolts (B), and connect the ODS unit 18P connector (C) and OPDS sensor connectors (D) to the ODS unit. Reinstall the cover (E).

2. Install the seat-back cover/pad in the reverse order of removal. Front Seat-Back Cover Replacement

3. Install the front passenger's seat assembly. Front Seat Removal/Installation

4. Do the battery terminal reconnection procedure. Procedures

5. Set the seat-back in the normal position, and make sure there is nothing on the front passenger's seat.

6. Clear any DTCs. Initial Inspection and Diagnostic Overview

7. Initialize the ODS unit. ODS Unit Initialization

8. Confirm proper SRS operation: Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode; the SRS indicator should come on for about 6 seconds and then go off.
