Fuel Pump Control Unit: Service and Repair

Fuel Pump Control Module Replacement

With SH-AWD

1. Remove the rear seat cushion and the seat-back. Rear Seat Removal/Installation

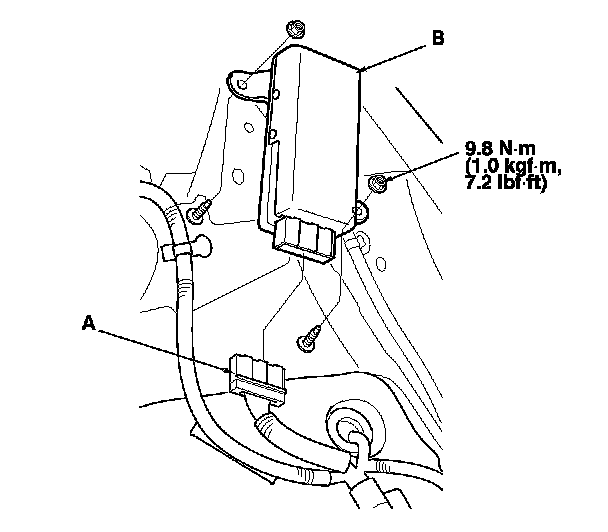

2. Disconnect the fuel pump control module connector (A).

3. Remove the fuel pump control module (B).

4. Install the parts in the reverse order of removal.
