Home >> Acura >> 2009 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Locations >> Connector Locations >> Passenger's Under-Dash Fuse/Relay Box

Passenger's Under-Dash Fuse/Relay Box

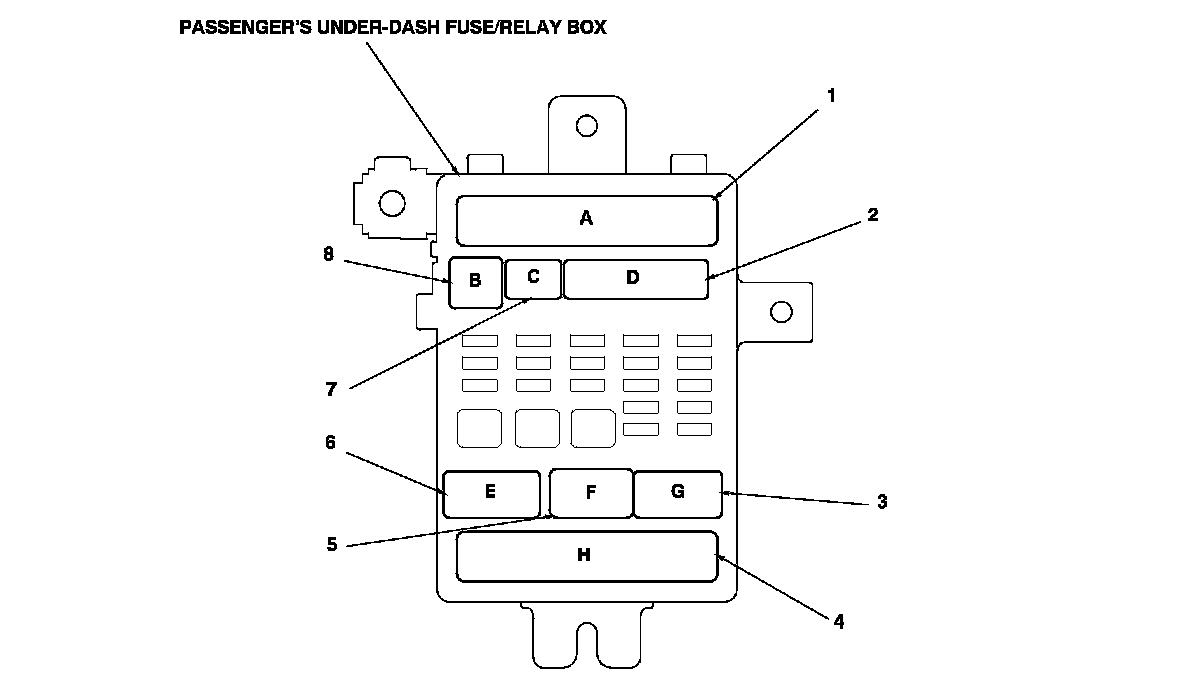

Passenger's Under-dash Fuse/Relay Box Connector Locations

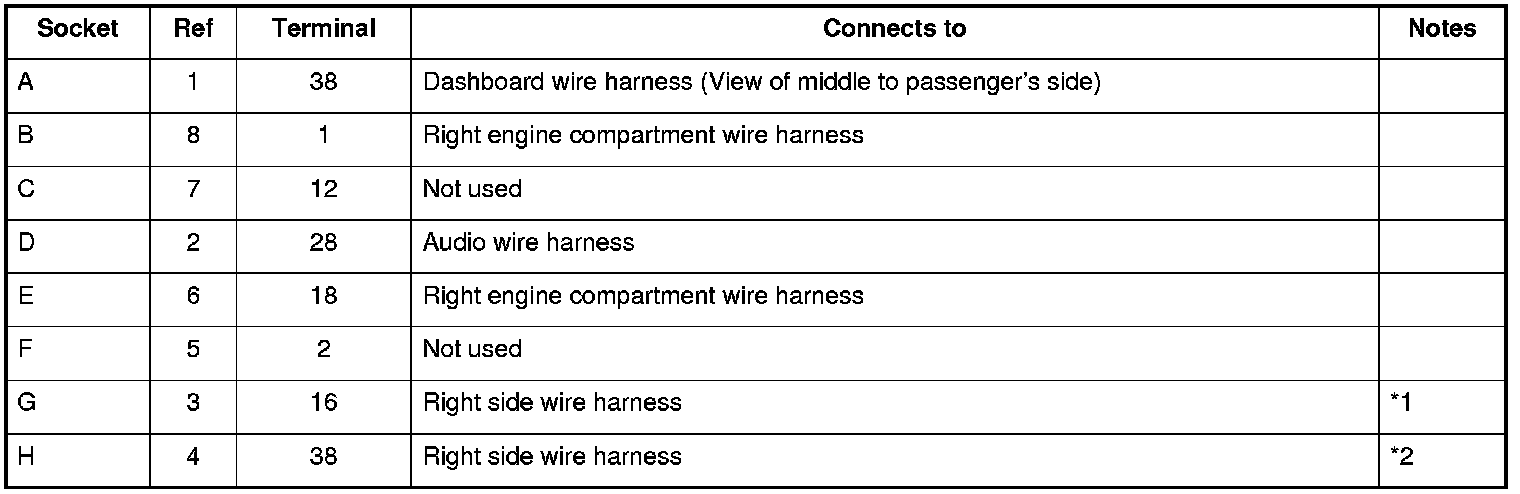

Passenger's Under-dash Fuse/Relay Box





*1: Without SH-AWD

*2: With SH-AWD
