Transmission Range Switch Test

Transmission Range Switch Test

1. Do the battery removal procedure. Removal and Replacement

2. Remove the air cleaner assembly. Service and Repair

3. Remove the battery base. Automatic Transmission Removal

4. Disconnect the transmission range switch connector.

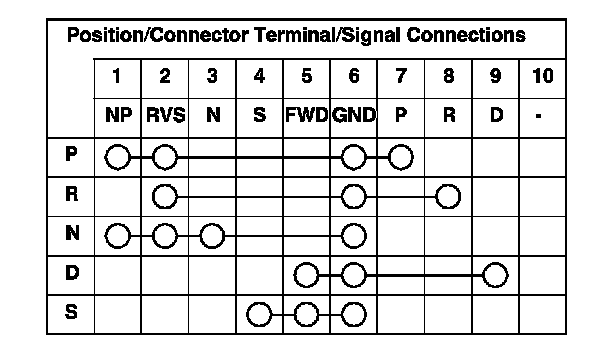

5. Check for continuity between terminals at the transmission range switch connector. There should be continuity between the terminals in the following table for each switch position.

6. Transmission range switch test is finished if the test results are OK. If there is no continuity between any terminals, check that the transmission range switch installation. If the switch installation is OK, replace the switch. Service and Repair

7. Install the battery base. Automatic Transmission Installation

8. Install the air cleaner assembly. Service and Repair

9. Do the battery installation procedure. Removal and Replacement

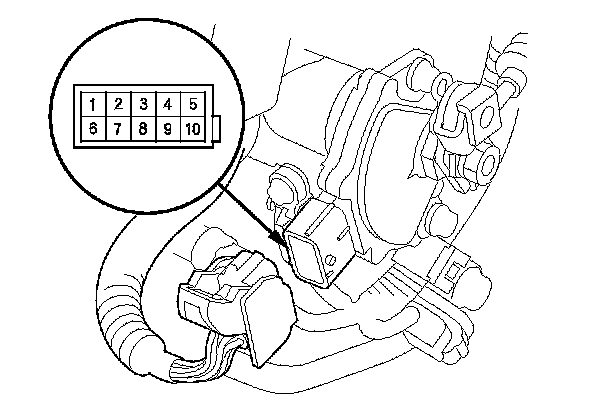

Transmission Range Switch Connector
