A/T Park Pin Switch Test

A/T Park Pin Switch Test

1. Remove the center console panel. Center Console Panel Removal/Installation

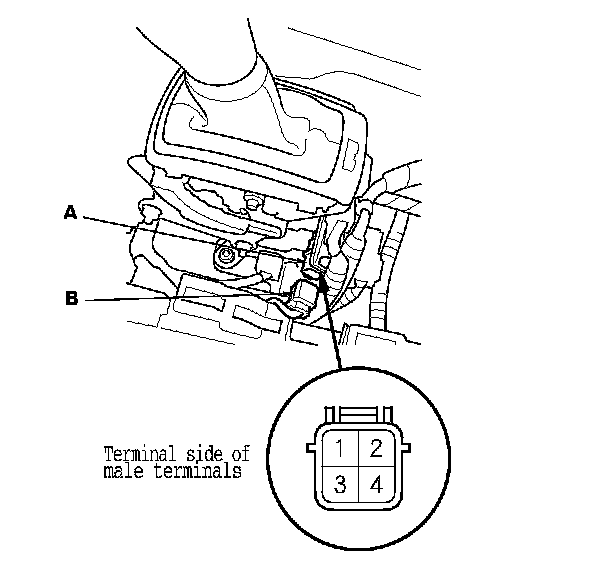

2. Disconnect the A/T shift lock solenoid/park pin switch 4P connector (A) from the park pin switch (B).

3. Check for continuity between terminals No. 3 and No. 4.
- There should be continuity when the shift the shift out of P.

- There should be no continuity when the shift the shift lever to P.

4. If the continuity is not as specified, replace the park pin switch. Service and Repair
