Resonator: Service and Repair

Intake Air Resonator Removal/Installation

1. Remove the splash separator (A).

2. Do the battery removal procedure. Removal and Replacement

3. Remove the air cleaner. Service and Repair

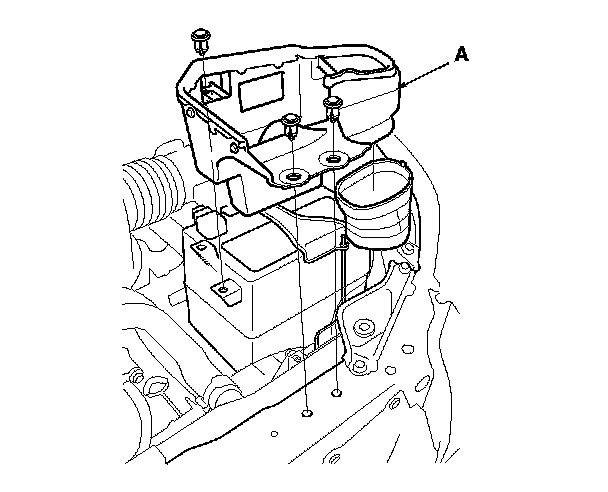

4. Remove the battery base (A).






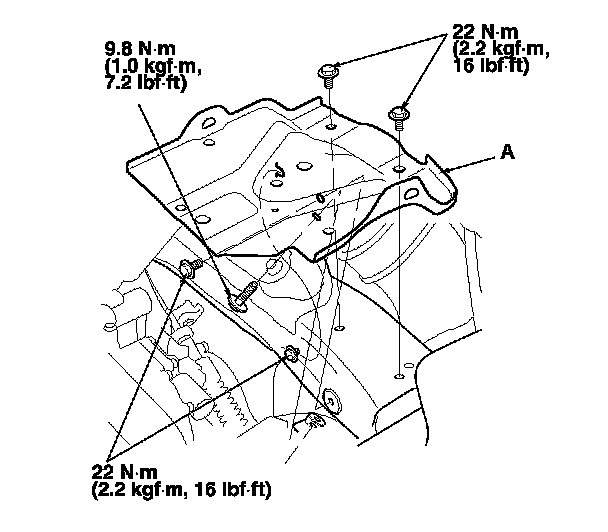

5. Remove the intake air duct (A).

6. Remove the front bumper. Front Bumper

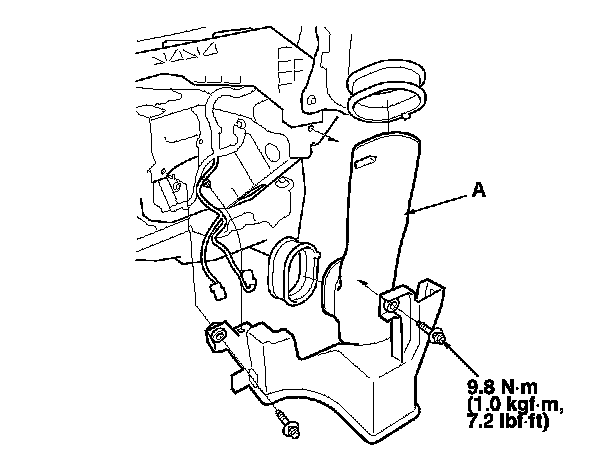

7. Remove the intake air resonator (A).

8. Install the parts in the reverse order of removal.

9. Do the battery installation procedure. Removal and Replacement
