Under-Floor TWC Removal/Installation

Under-floor TWC Removal/Installation

With SH-AWD

1. Raise the vehicle on a lift.

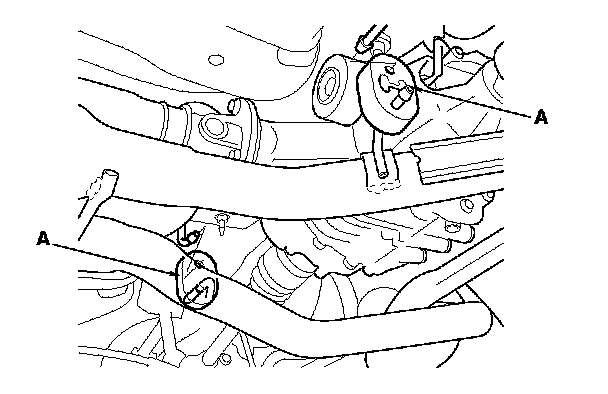

2. Remove the exhaust pipe hangers (A).

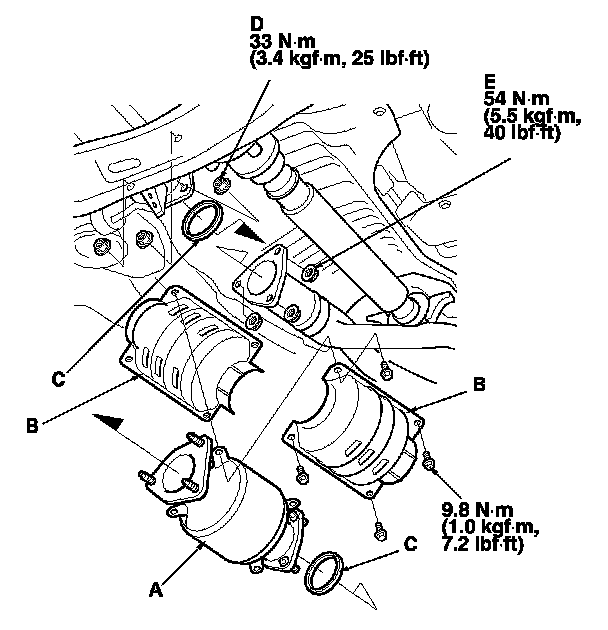

3. Remove the under-floor TWC (A).

4. Remove the converter cover (B).

5. Install the parts in the reverse order of removal with new gaskets (C) and new self-locking nuts (D) and (E).
