Home >> Acura >> 2009 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Application and ID

Emission Control Systems: Application and ID




Under-hood Emission Control Label

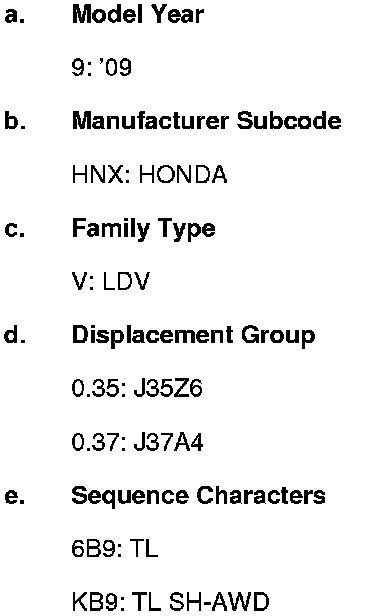

Emission Group Identification

Example:





'09 Model

CONFORMS TO REGULATIONS: 2009 MY

Test Group and Evaporative Family

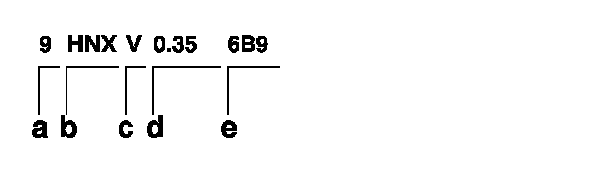

Test Group:

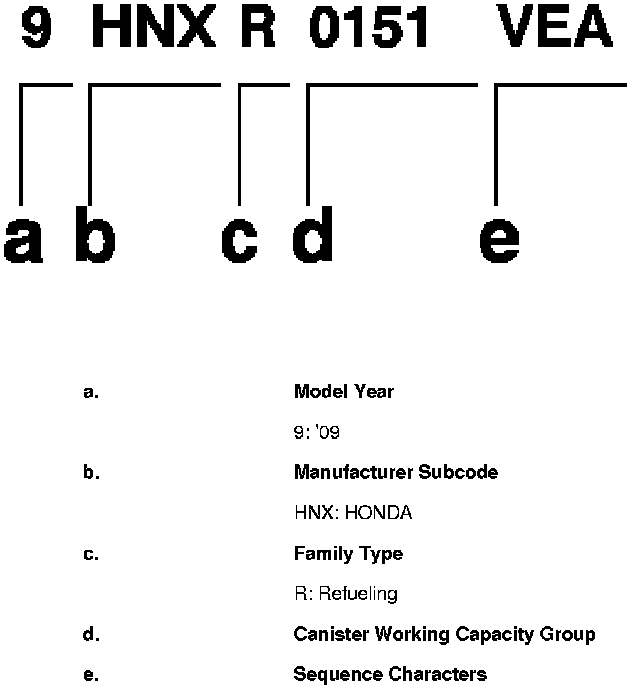

Evaporative Family:
