Reading the Maintenance Minder

Maintenance Minder

Your vehicle displays engine oil life and maintenance service items on the multi-information display to show you when you should perform engine oil replacement and indicated maintenance service.

Based on the engine operating conditions and accumulated engine revolutions, the onboard computer in your vehicle calculates the remaining engine oil life and displays it as a percentage.

Engine Oil Life Indicator

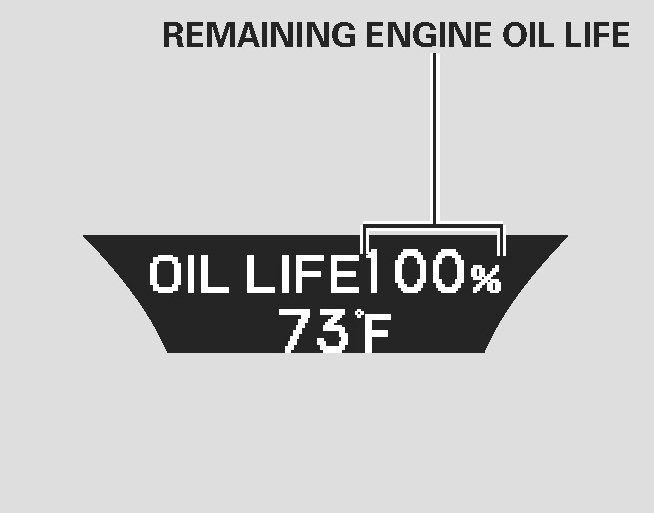

To see the current engine oil life displayed on the multi-information display, turn the ignition switch to the ON (II) position, and press the SEL/RESET button on the steering wheel repeatedly until the engine oil life is displayed.

Models equipped with the keyless access system have an engine start/stop button instead of an ignition switch. ON Mode is the equivalent of ON (II).

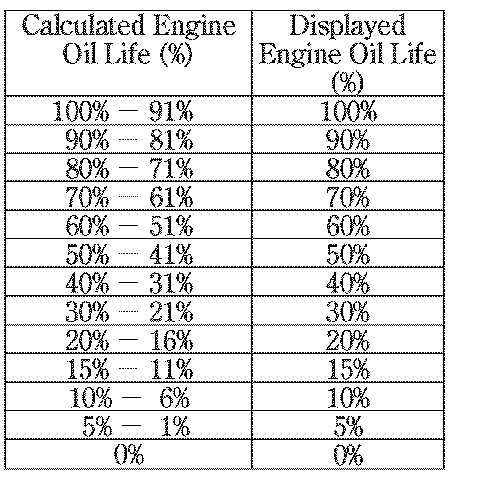

The remaining engine oil life is shown on the multi-information display according to the table above.

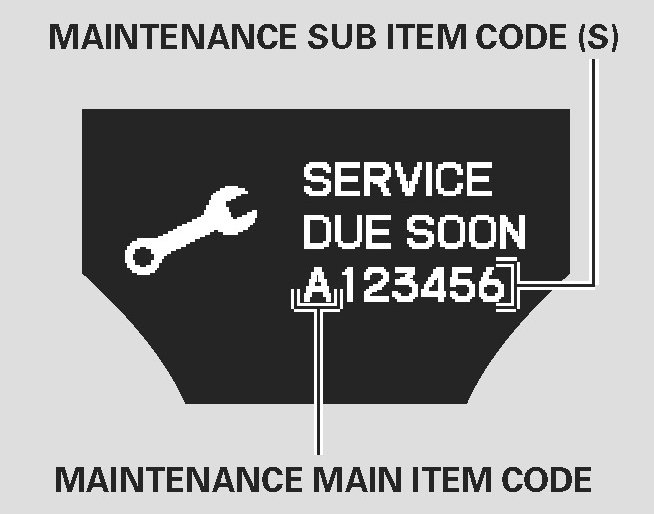

When the remaining engine oil life is 15 to 6 percent, the multi-information display shows a "SERVICE DUE SOON" message along with the maintenance item code(s) indicating the main and sub items required at the time of the oil change. Refer to Maintenance / Service Intervals / Indicator Based Maintenance Service / Indicator Based Service for a complete list of the maintenance main items and sub items. Indicator Based Service

Pressing either INFO button (up and down arrow icons) switches the display from the message to another display. Once you switch the display, this message will go off.





Along with the message, the system message indicator comes on as illustrated above.

The message appears on the multi-information display each time you turn the ignition switch to the ON (II) position.

Models equipped with the keyless access system have an engine start/ stop button instead of an ignition switch. ON Mode is the equivalent of ON (II).

This message reminds you that your vehicle will soon be due for scheduled maintenance.





Press the SEL/RESET button on the steering wheel repeatedly to select the engine oil life information. Along with the "OIL LIFE" message you will see the percentage of the remaining engine oil life and the maintenance item codes on the multi-information display.

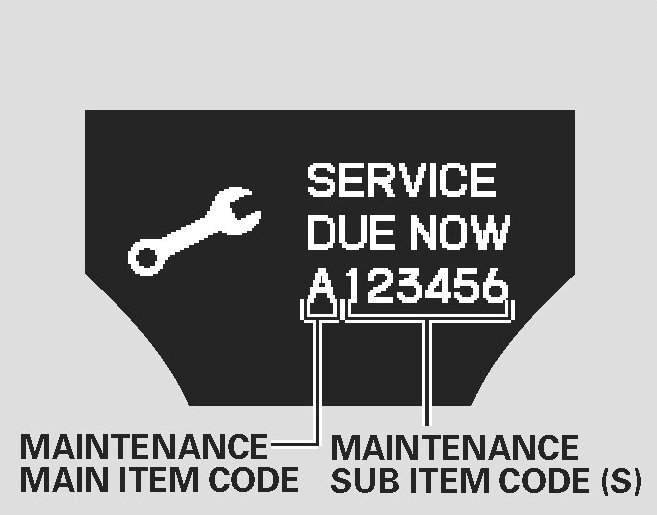

When the remaining oil life is 5 to 1 percent the multi-information display shows a "SERVICE DUE NOW" message with the same maintenance items "SERVICE DUE" was displayed with, When you see this message, have the indicated maintenance performed as soon as possible.

Pressing either INFO button (up and down arrow icons) switches the display from the message to another display. Once you switch the display, this message will go off.

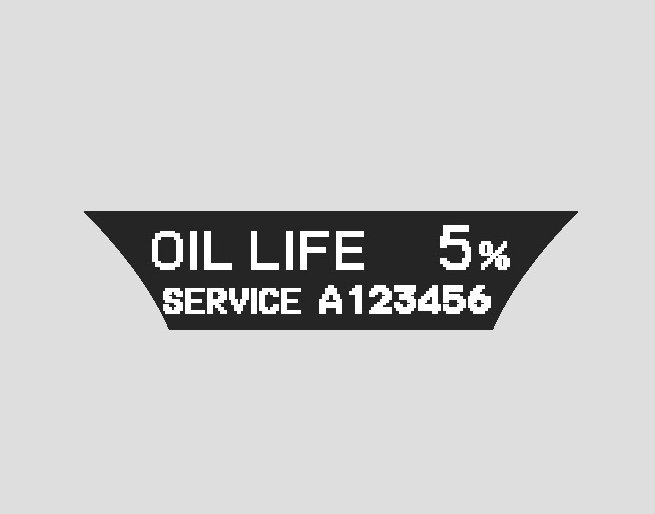

Press the SEL/RESET button on the steering wheel repeatedly to select the engine oil life. The message "SERVICE", along with "5%" and the maintenance item code are displayed on the multi-information display when the calculated engine oil life is 1 to 5 percent (see table).

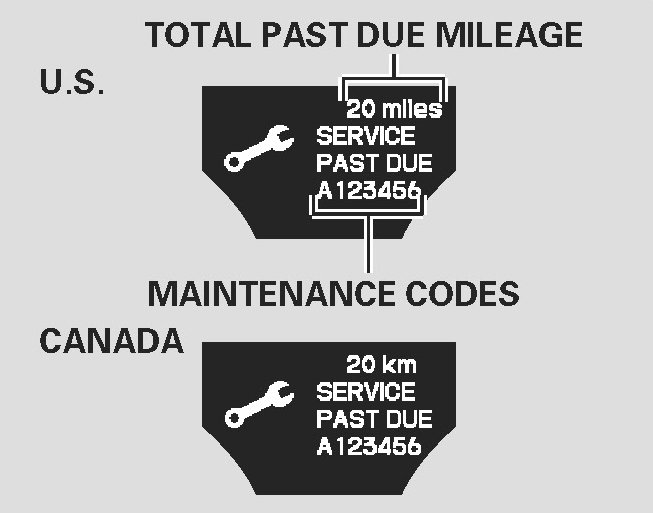

If the indicated maintenance service is not done and the remaining engine oil life reaches 0%, the multi-information display will show the message "SERVICE PAST DUE" and the maintenance item code(s). This message is displayed when the total mileage is less than 10 miles (for U.S, models) or 10 km (for Canadian models) after the engine oil life became 0%.
These messages will come on every time you turn the ignition switch to the ON (II) position.

Models equipped with the keyless access system have an engine start/stop button instead of an ignition switch. ON Mode is the equivalent of ON (II).

Immediately have the service performed, and make sure to reset the display. Refer to Instrument Panel, Gauges and Warning Indicators / Maintenance Required Lamp/Indicator / Service and Repair: Service and Repair

Pressing either INFO button (up and down arrow icons) switches the display from the message to another display. To see the message again, press either INFO button repeatedly.

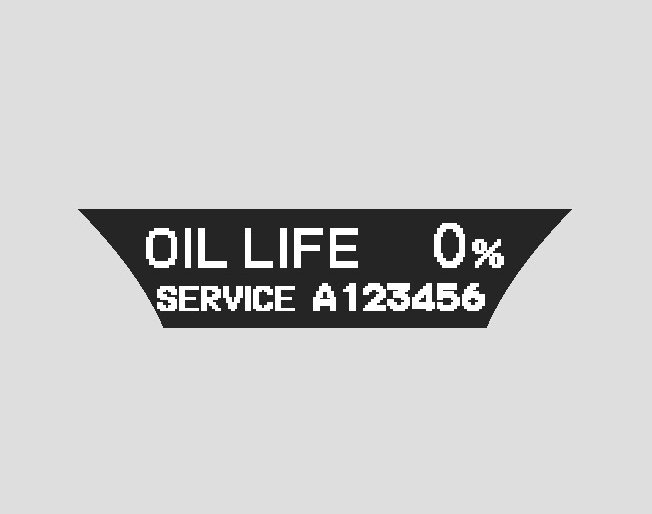

Press the SEL/RESET button on the steering wheel repeatedly to select the engine oil life. The message SERVICE, along with "0%" and the maintenance item code are displayed on the multi-information display when the calculated engine oil life is 0 to 1 percent.

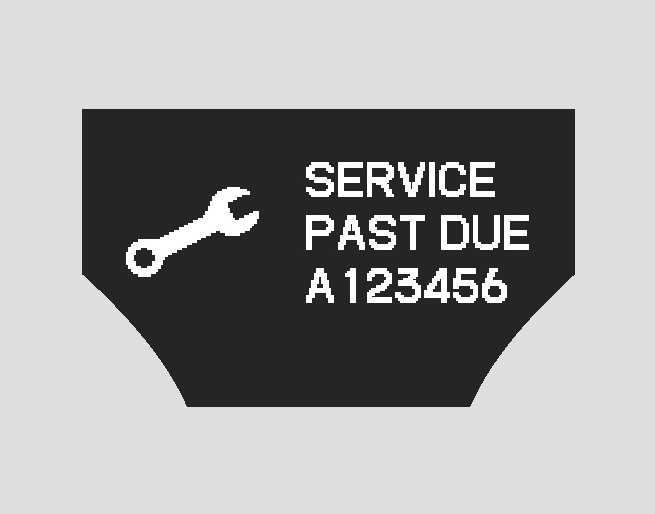

If the indicated required service is not done and the remaining engine oil life becomes 0% the multi-information display will show a "SERVICE PAST DUE" message the total mileage after the remaining oil life became "0%" and the maintenance item code(s).

This message is displayed when you drive over 10 miles (for U.S. models) or 10 km (for Canadian models) after seeing the 0% message.

Immediately have the service performed, and make sure to reset the display.

Pressing either INFO button (up and down arrow icons) switches the display from the message to another display. To see the message again, press either INFO button repeatedly.

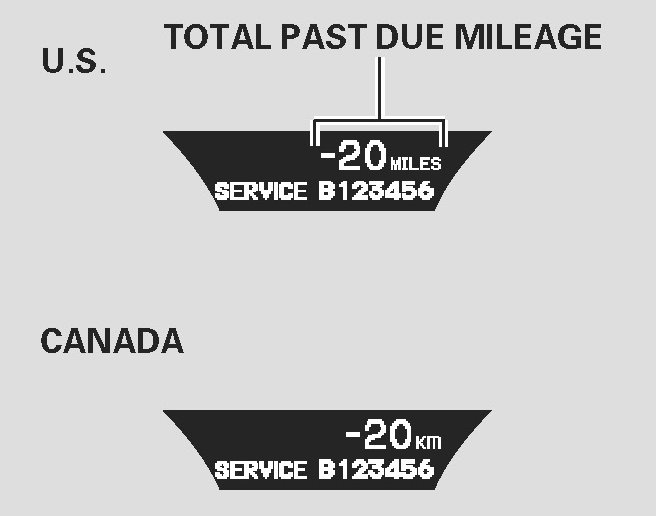

When you press the SEL/RESET button to select the engine oil life, the message, along with the maintenance item code(s) and the total negative mileage after the oil life became 0%, will he displayed on the multi-information display.

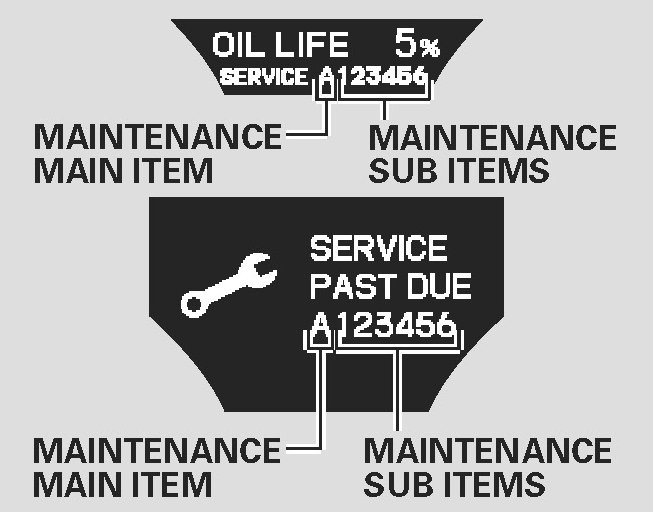

Maintenance Main Items and Sub Items





All maintenance items shown on the multi-information display are in code. For all explanation of these maintenance codes refer to Maintenance / Service Intervals / Indicator Based Maintenance Service / Indicator Based Service for a complete list of the maintenance main items and sub items. Indicator Based Service
