Trunk Lid Latch Switch Test

Trunk Lid Latch Switch Test

1. Open the trunk lid, and remove the trunk lid trim. Interior Trim Removal/Installation - Trunk Lid Trim Panel

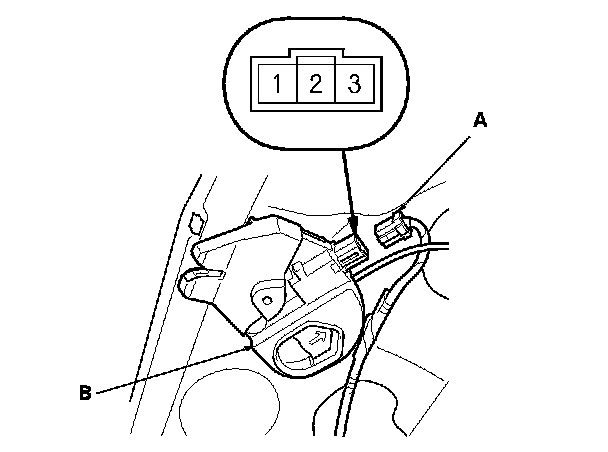

2. Disconnect the 3P connector (A) from the trunk lid latch assembly (B).

3. Check for continuity between terminals No. 1 and No. 2.
- There should be continuity with the trunk lid open.

- There should be no continuity with the trunk lid closed.

4. If the continuity is not as specified, replace the trunk lid latch assembly.
