Home >> Acura >> 2009 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Description and Operation >> How The Headlight Circuit Works (Without Keyless Access)

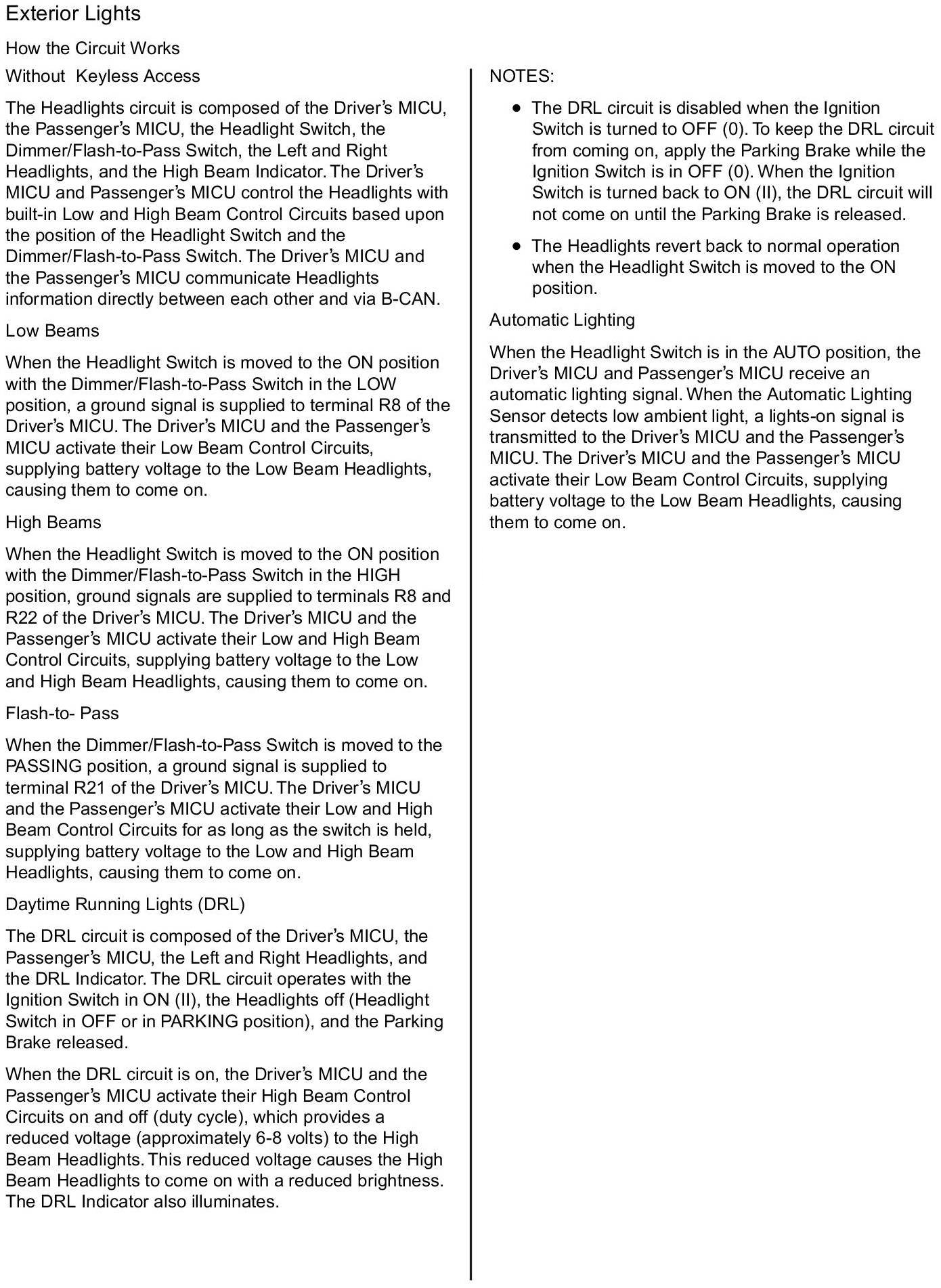

How The Headlight Circuit Works (Without Keyless Access)
