Front Engine Mount Removal and Installation




Front Engine Mount Removal and Installation

Removal

1. Remove the engine compartment covers. Service and Repair

2. Remove the front warm up three way catalytic converter (front WU-TWC). Warm Up TWC Removal/Installation

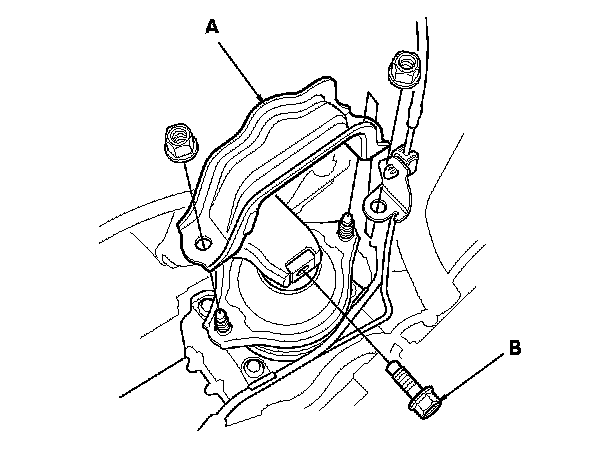

3. Remove the front engine mount stop (A), then remove the front engine mount bolt (B).

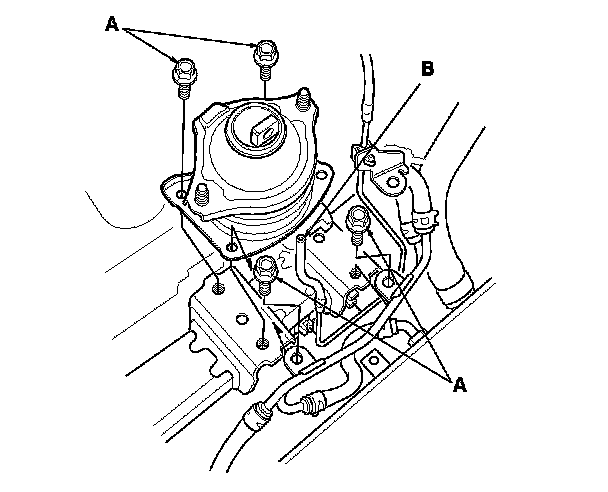

4. Remove the front engine mount mounting bolts (A).

5. Lift and support the engine with a jack and a wood block under the engine/transmission.

6. Remove the front engine mount and disconnect the vacuum hose (B).






Installation

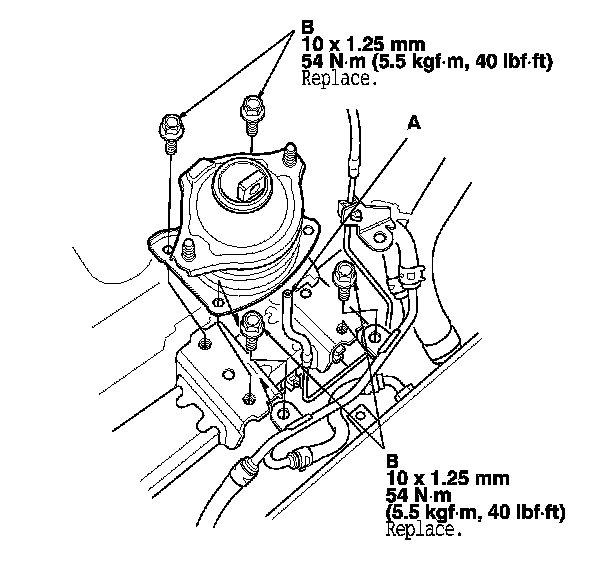

1. Connect the vacuum hose (A), then align the front engine mount with its mounting holes and install the front engine mount mounting bolts (B).

2. Remove the jack and the wood block.

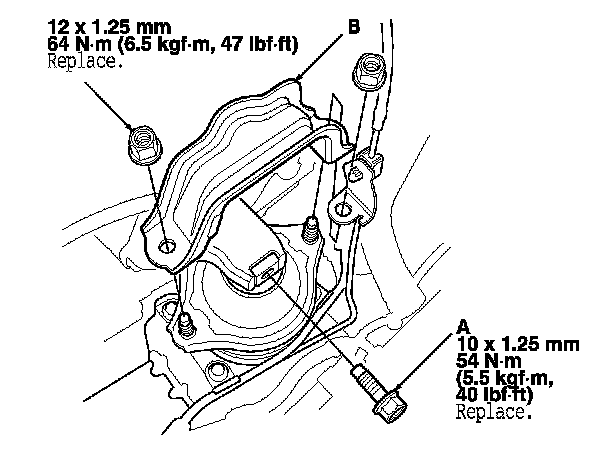

3. Tighten the front engine mount bolt (A), then install the front engine mount stop (B).

4. Install the front warm up three way catalytic converter (front WU-TWC). Warm Up TWC Removal/Installation

5. Install the engine compartment covers. Service and Repair
