Connector or Terminal (M/T)




Connector and Harness Locations

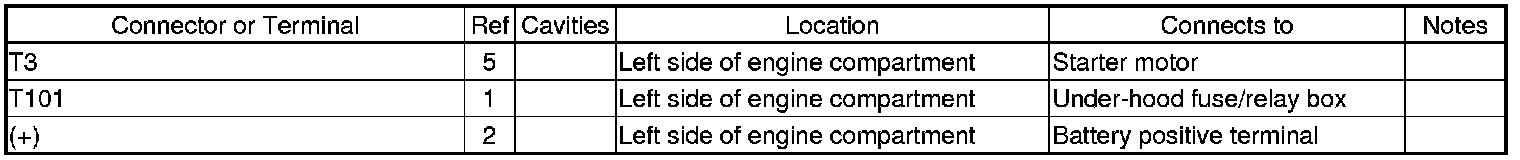

Starter Cable (M/T)

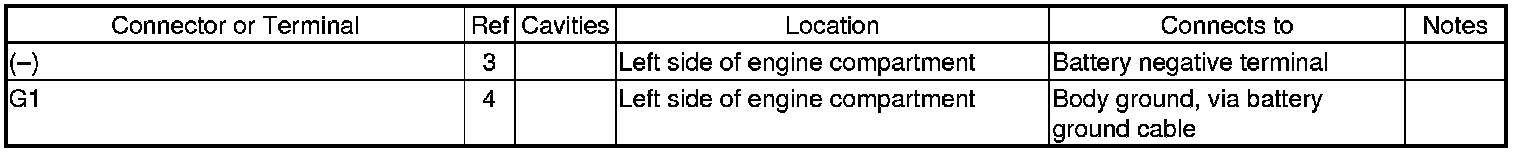

Battery Ground Cable (M/T)

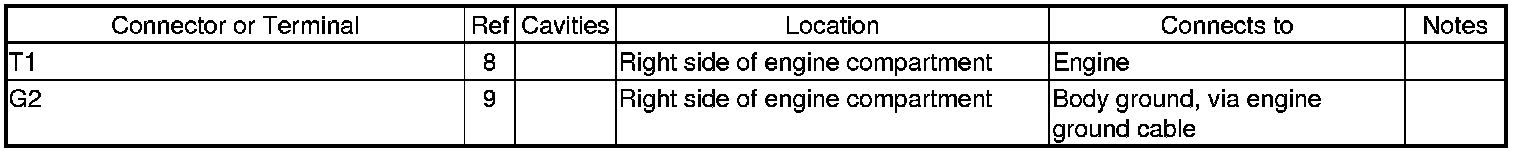

Engine Ground Cable (M/T)

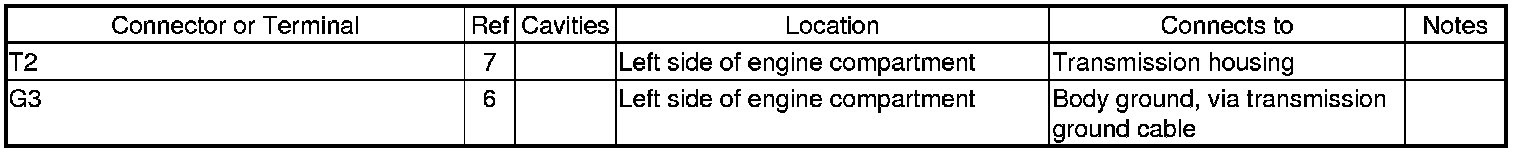

Transmission Ground Cable (M/T)






Harness View
