Connector or Terminal

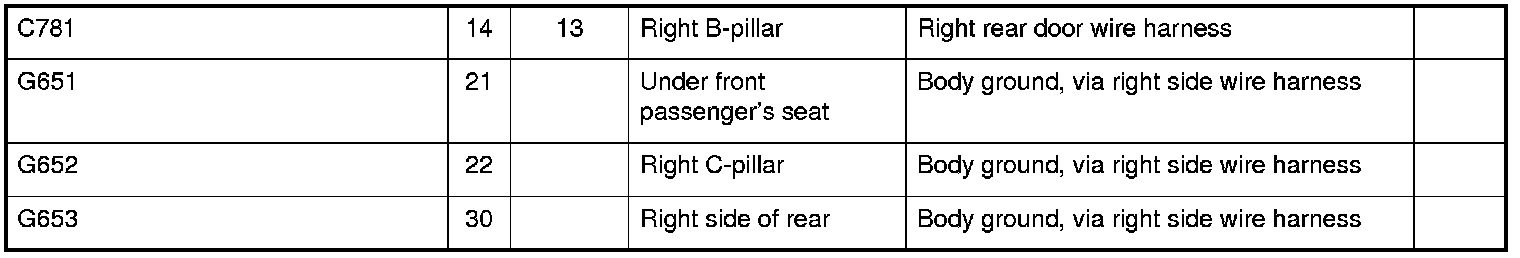

Right Side Wire Harness and Rear Window Defogger Ground Wire Connector and Harness Locations

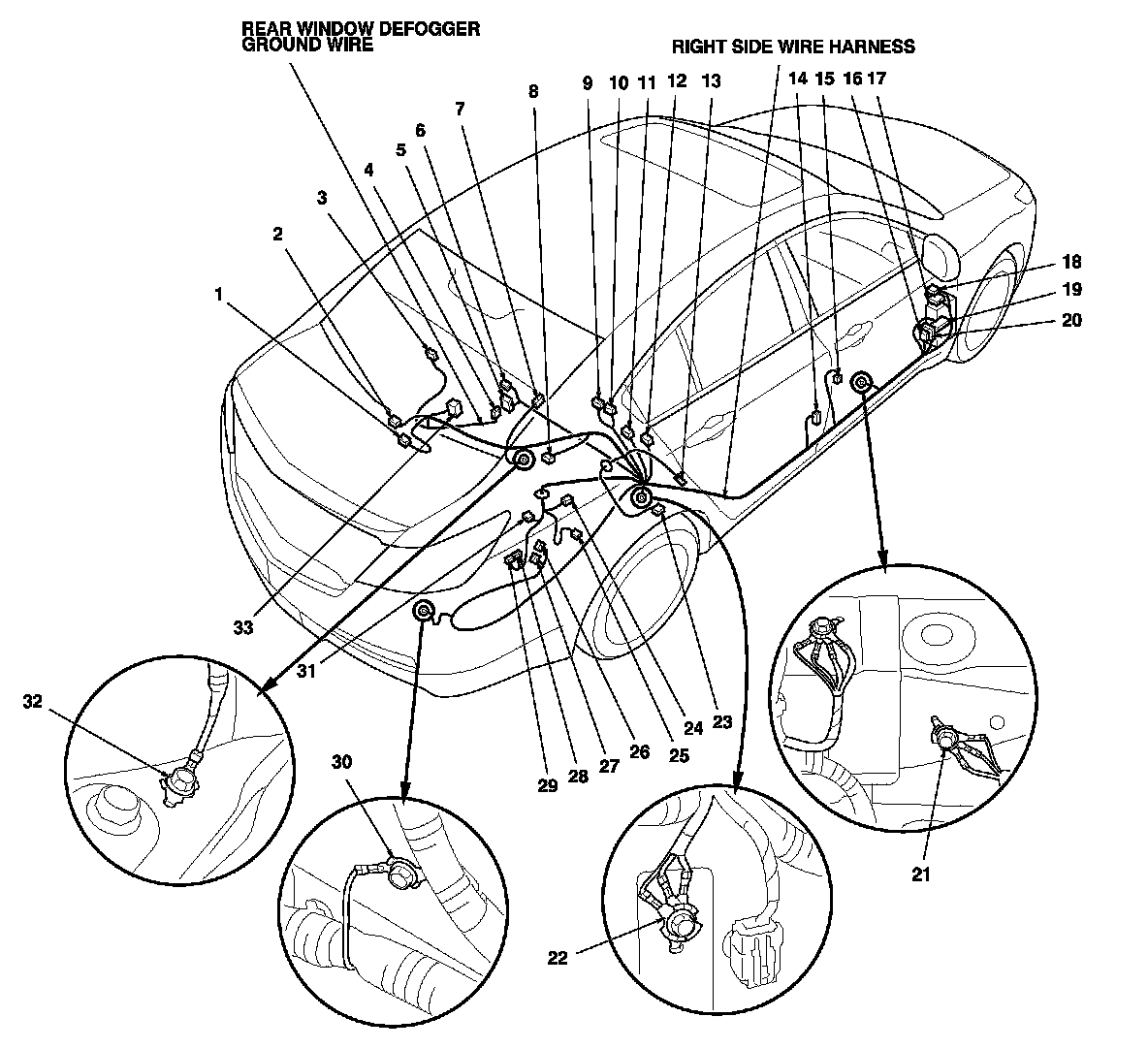

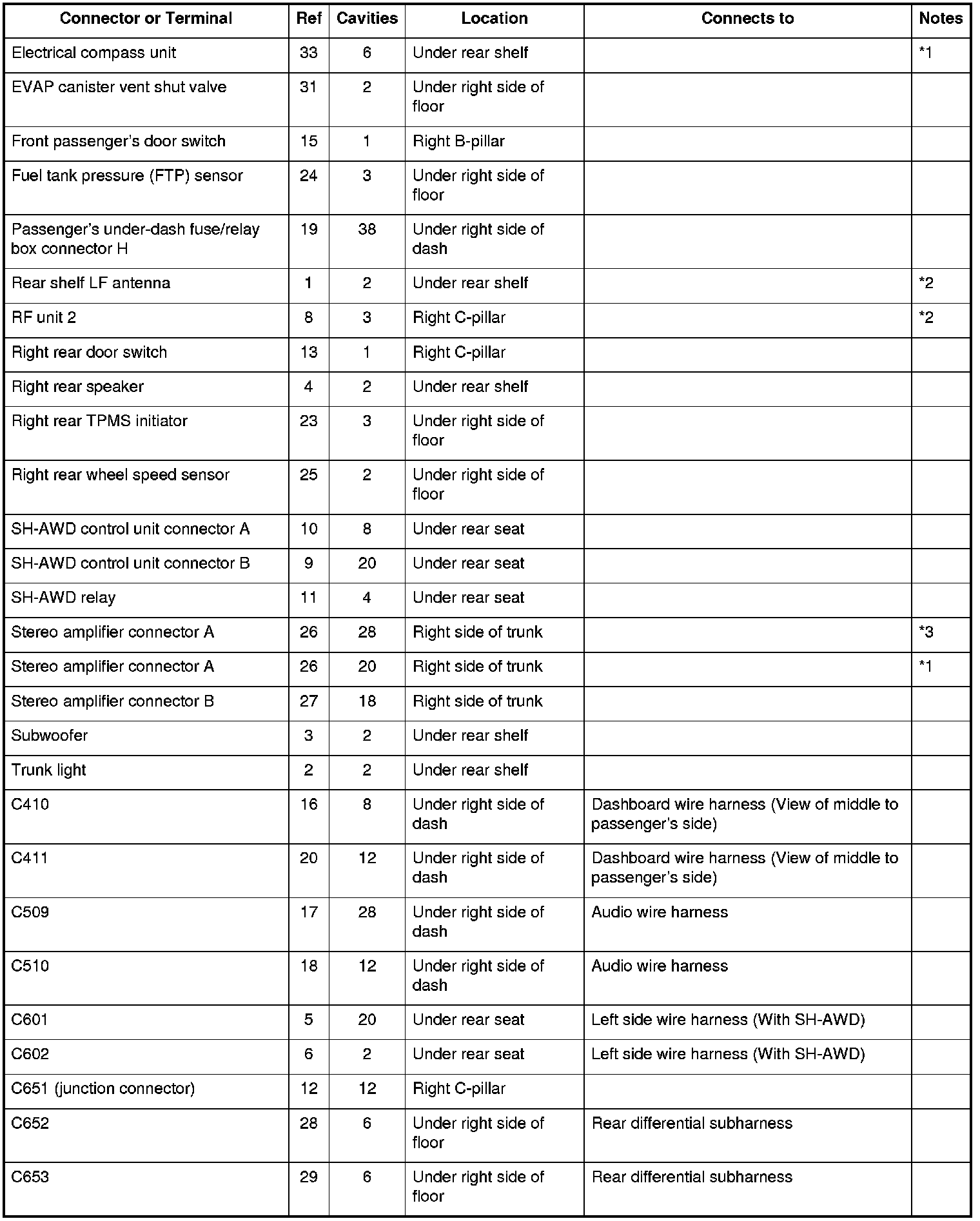

Right Side Wire Harness (With SH-AWD)









*1: Without navigation system

*2: With keyless access system

*3: With navigation system

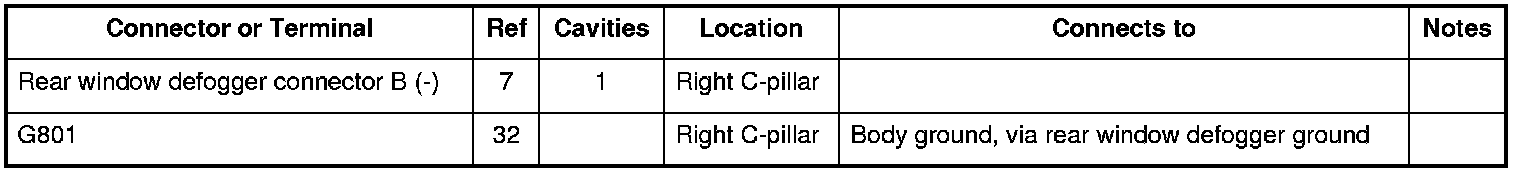

Rear Window Defogger Ground Wire
