Home >> Acura >> 2009 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Left Engine Compartment Wire Harness (Engine Compartment Branch) Connector And Harness Locations

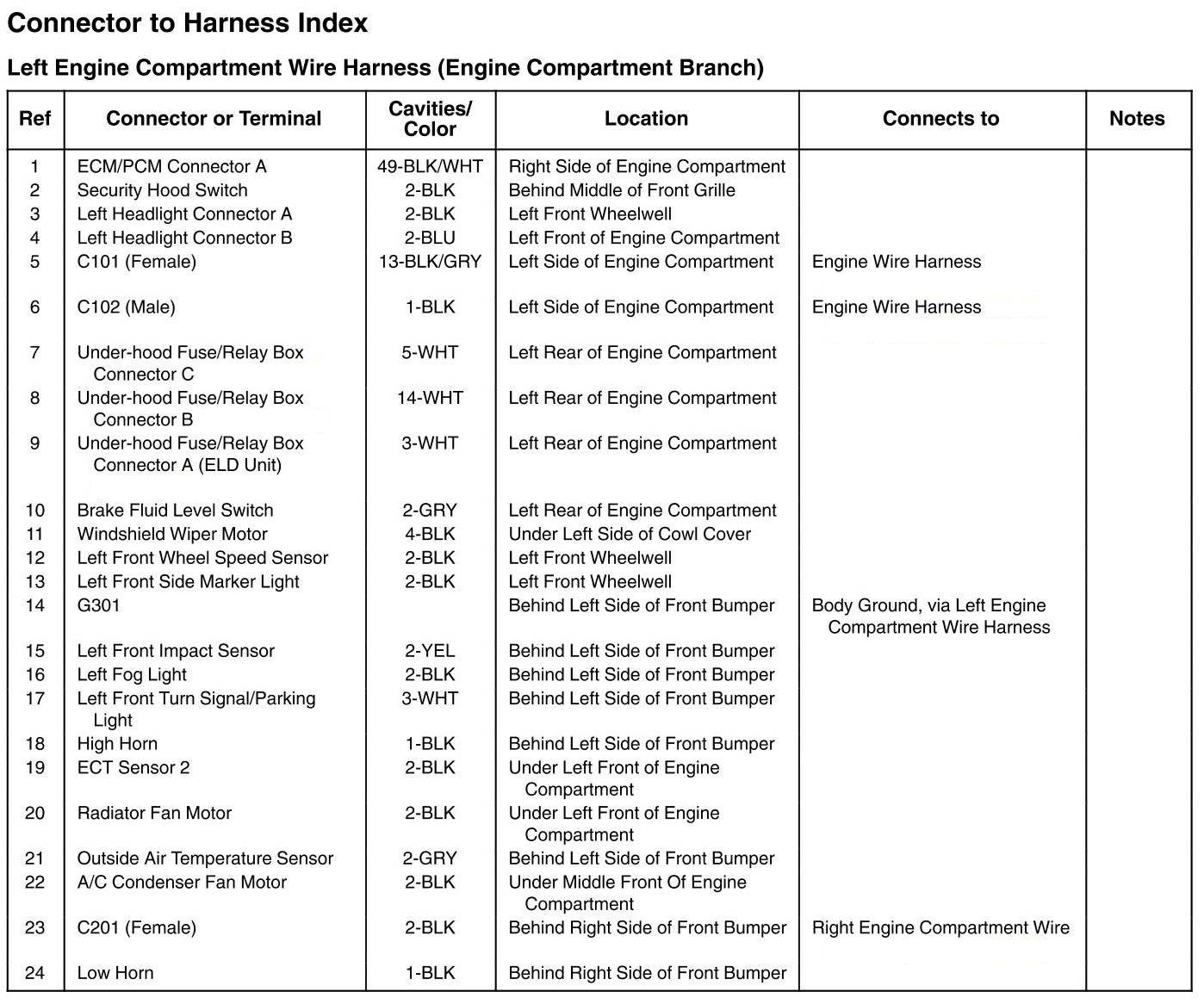

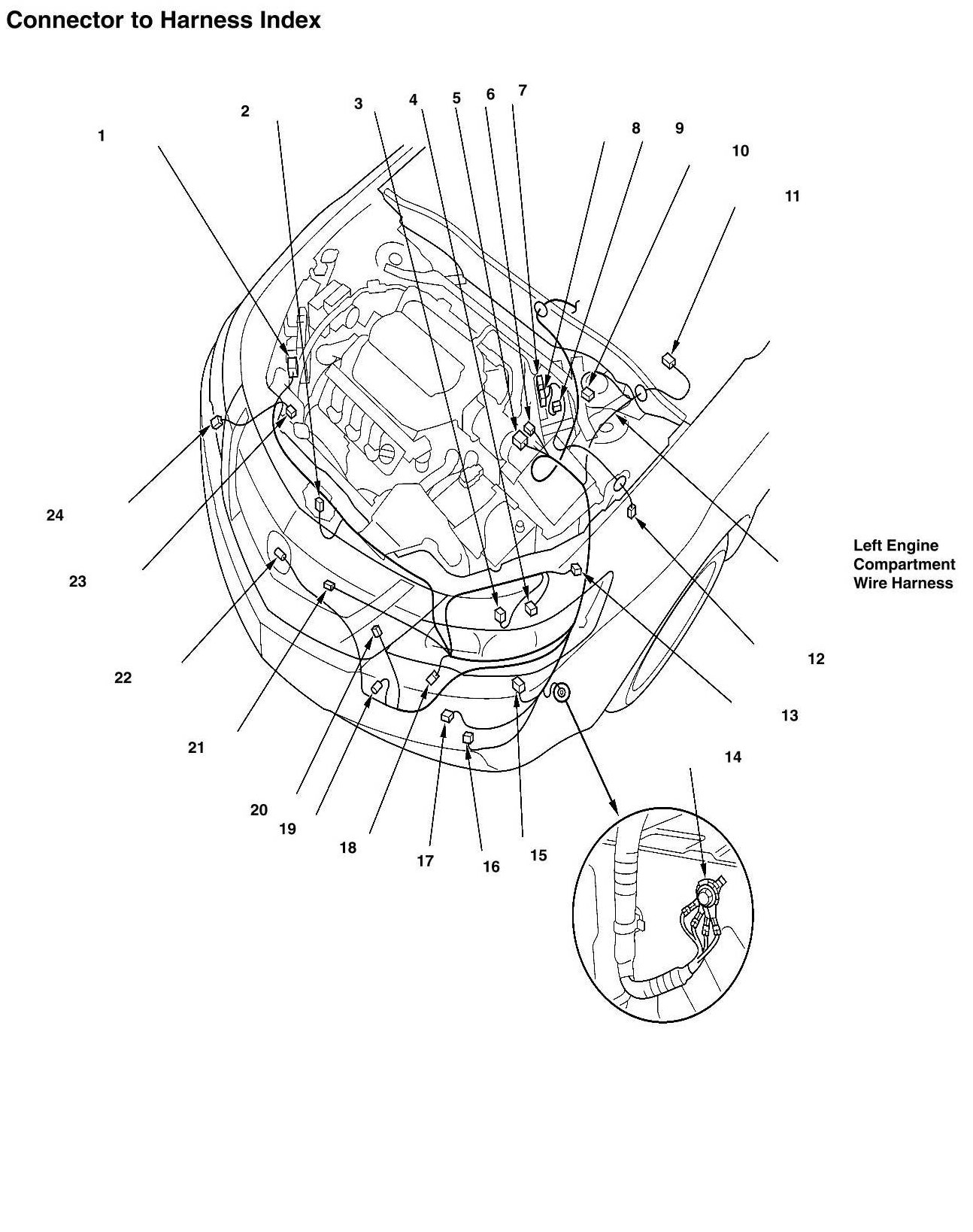

Left Engine Compartment Wire Harness (Engine Compartment Branch) Connector And Harness Locations
