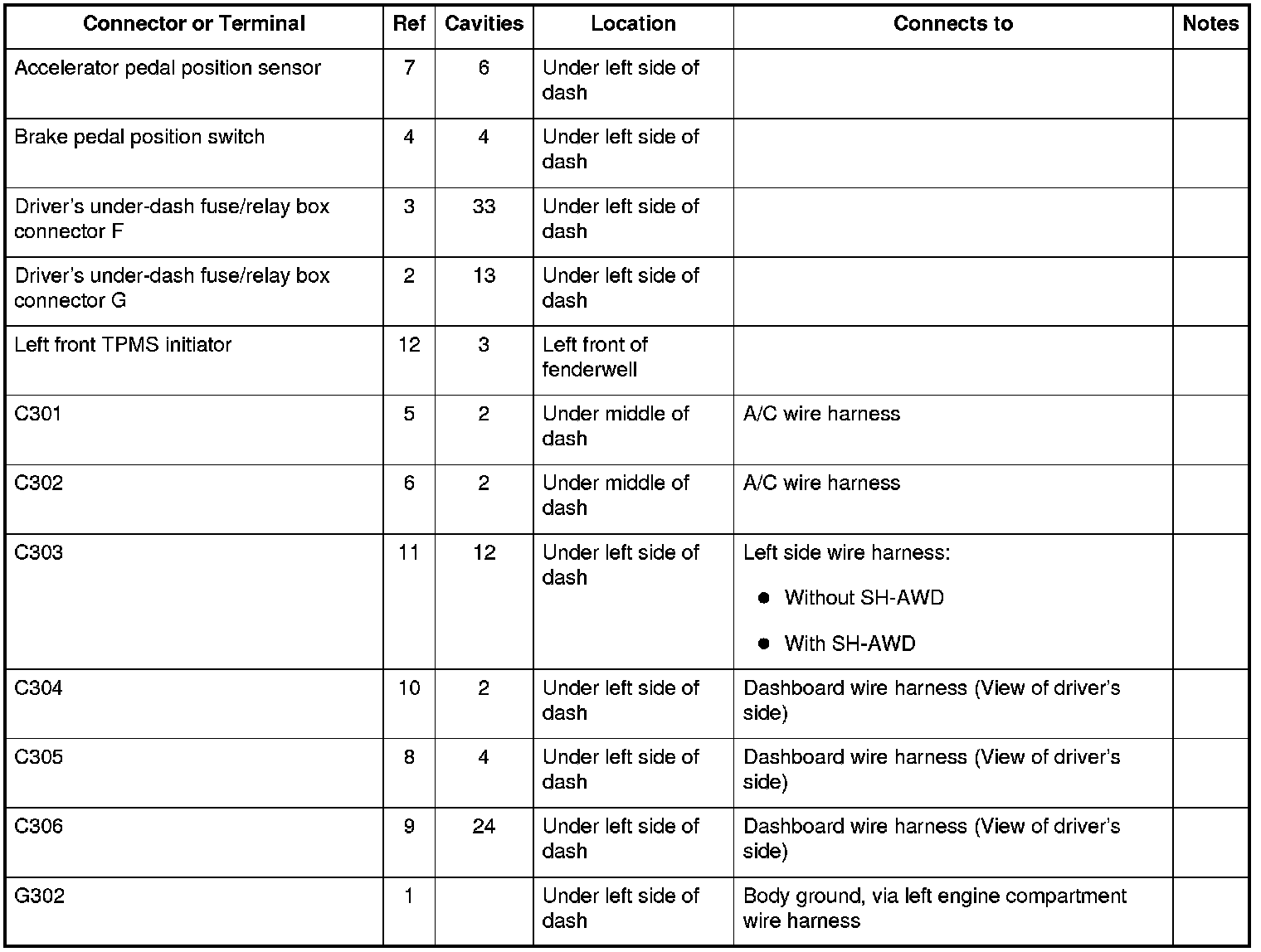

Connector or Terminal




Left Engine Compartment Wire Harness (Dashboard Branch) Connector and Harness Locations

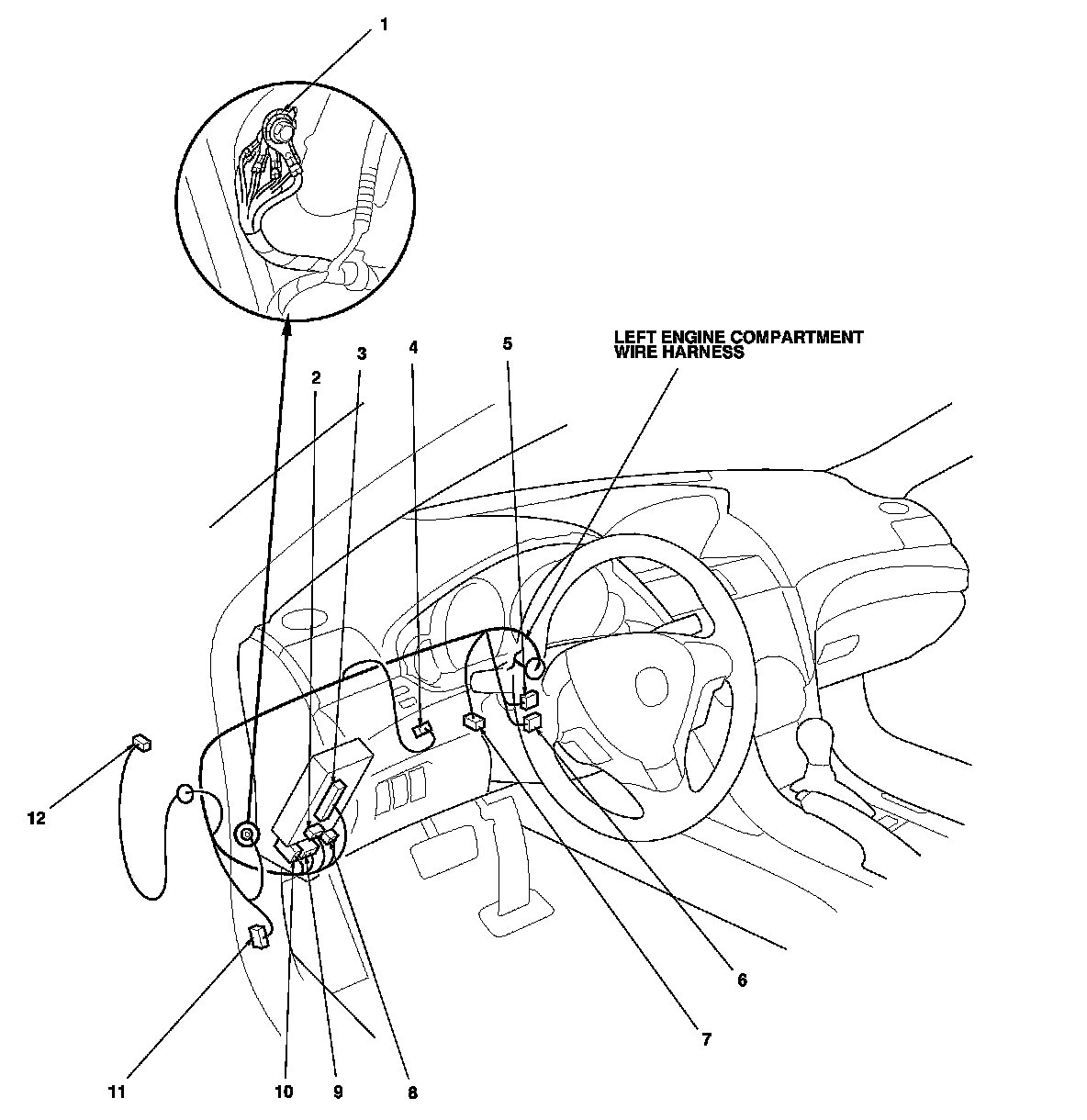

Left Engine Compartment Wire Harness (Dashboard branch)
