Home >> Acura >> 2009 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness (Engine Section) And Knock Sensor Subharness Connector And Harness Locations >> Connector or Terminal

Connector or Terminal

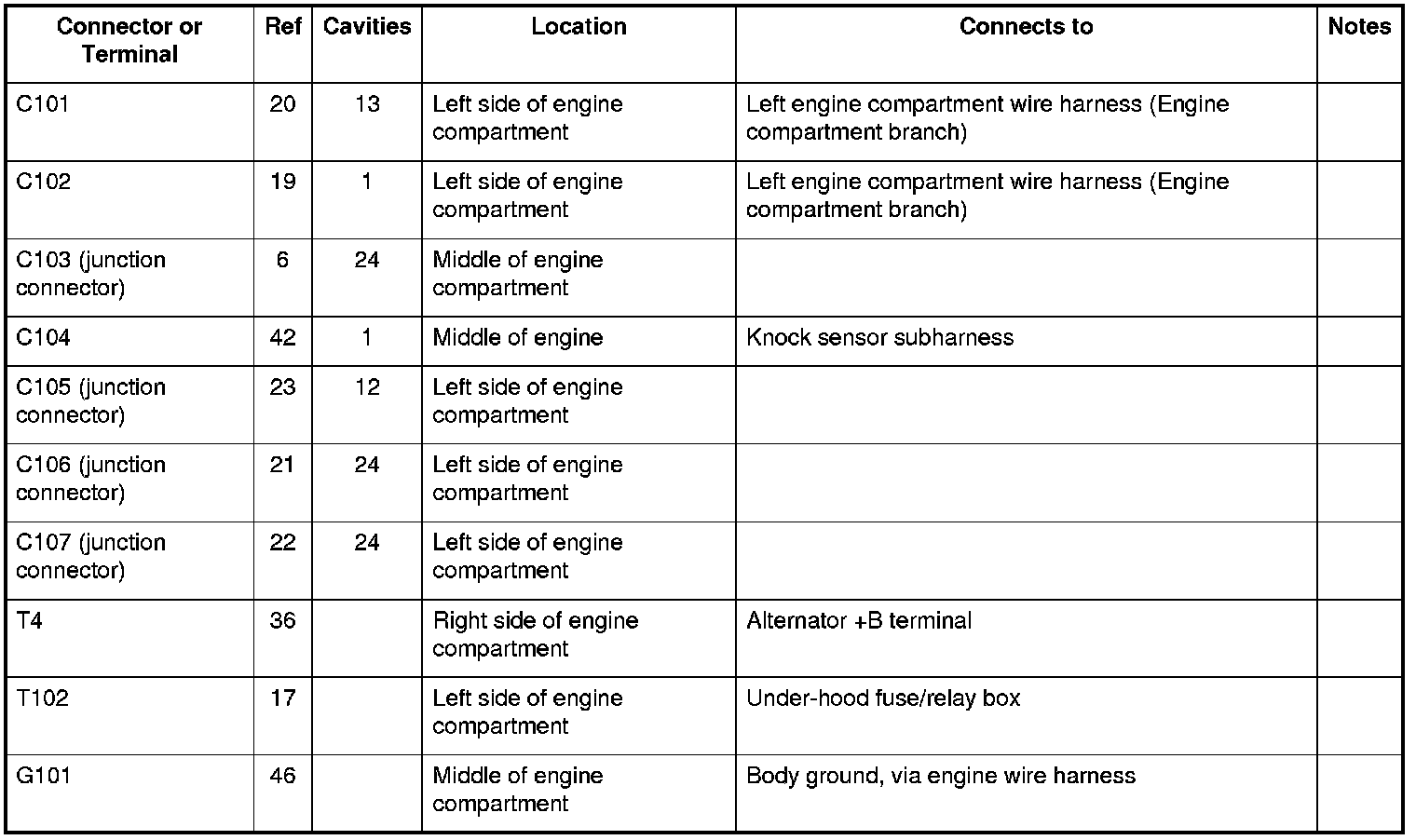

Engine Wire Harness (Engine Section) and Knock Sensor Subharness Connector and Harness Locations

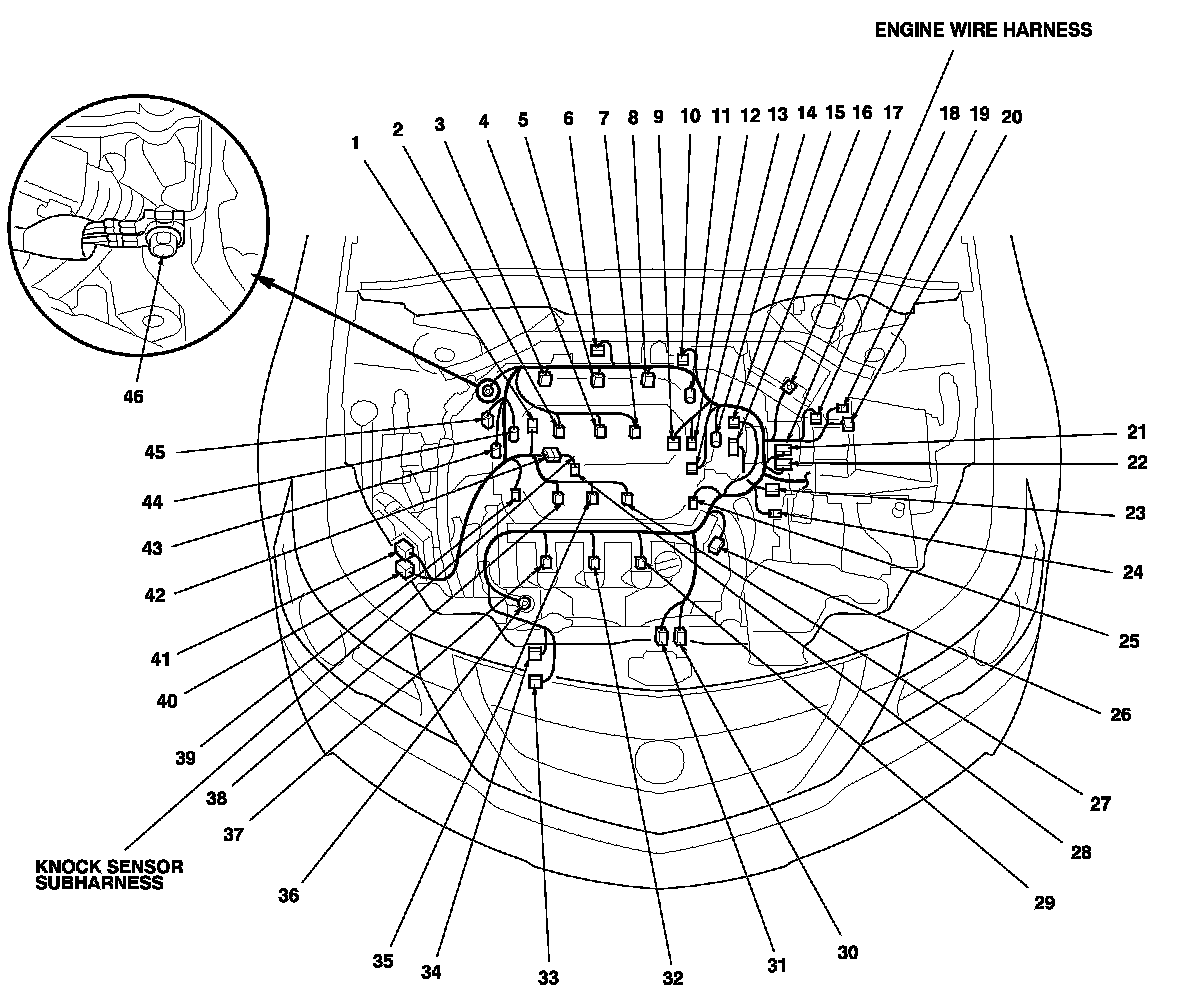

Engine Wire Harness (Engine section)

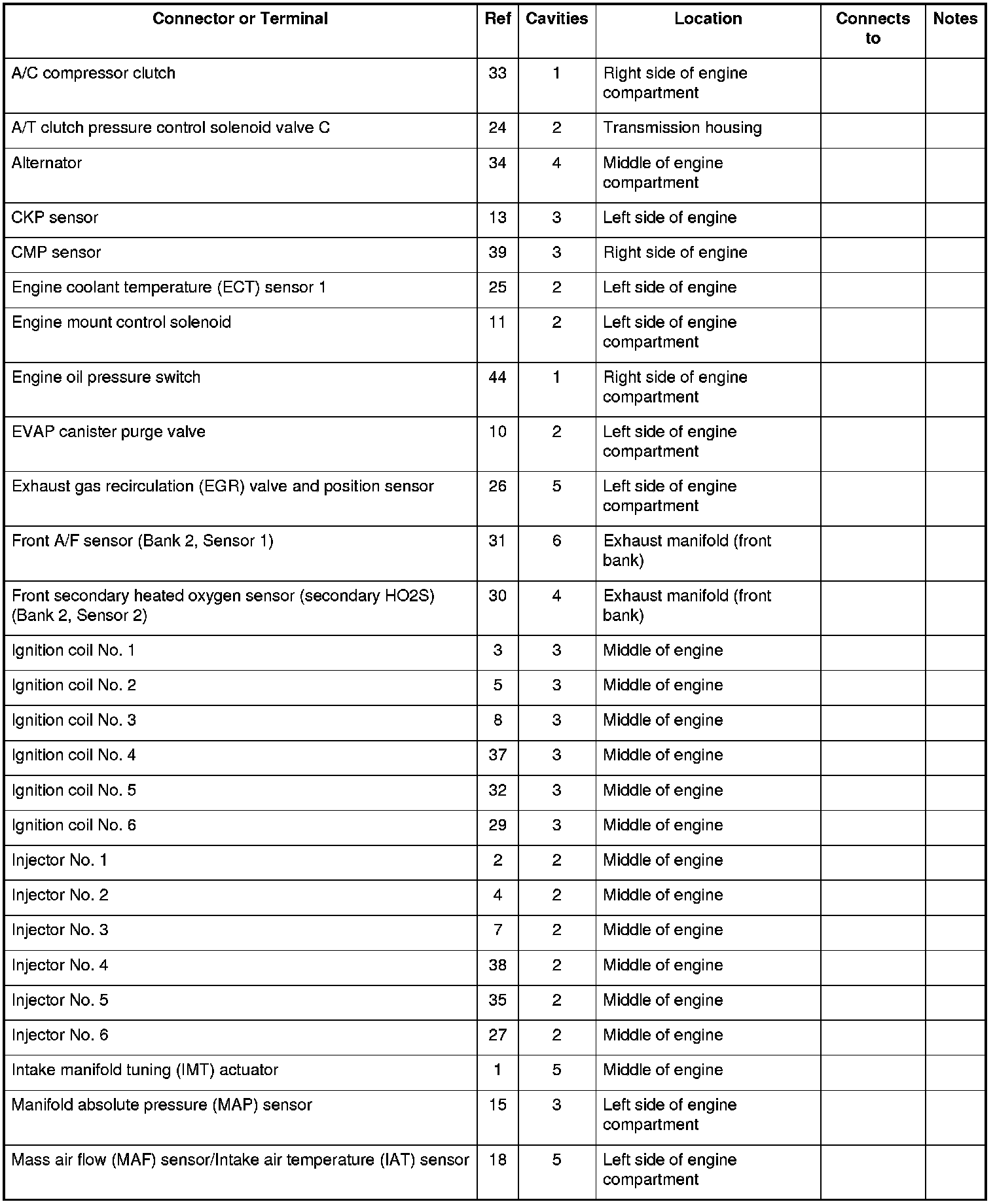

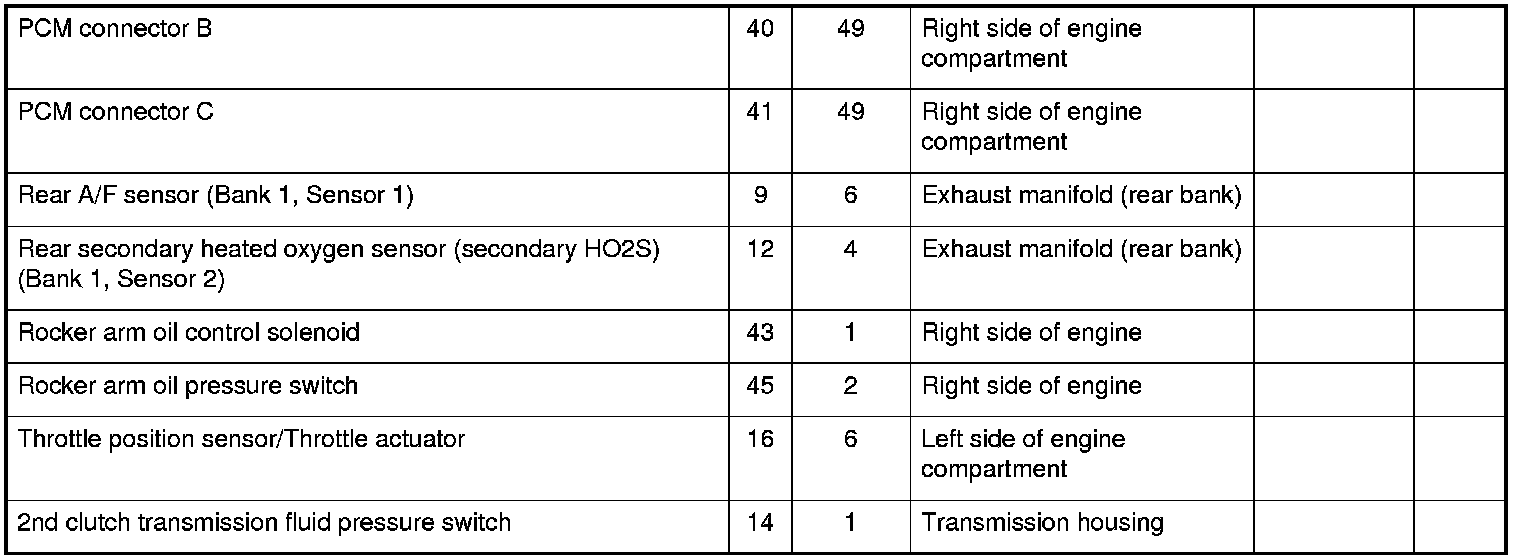

Engine Wire Harness (Engine section)





Knock Sensor Subharness
