Connector or Terminal

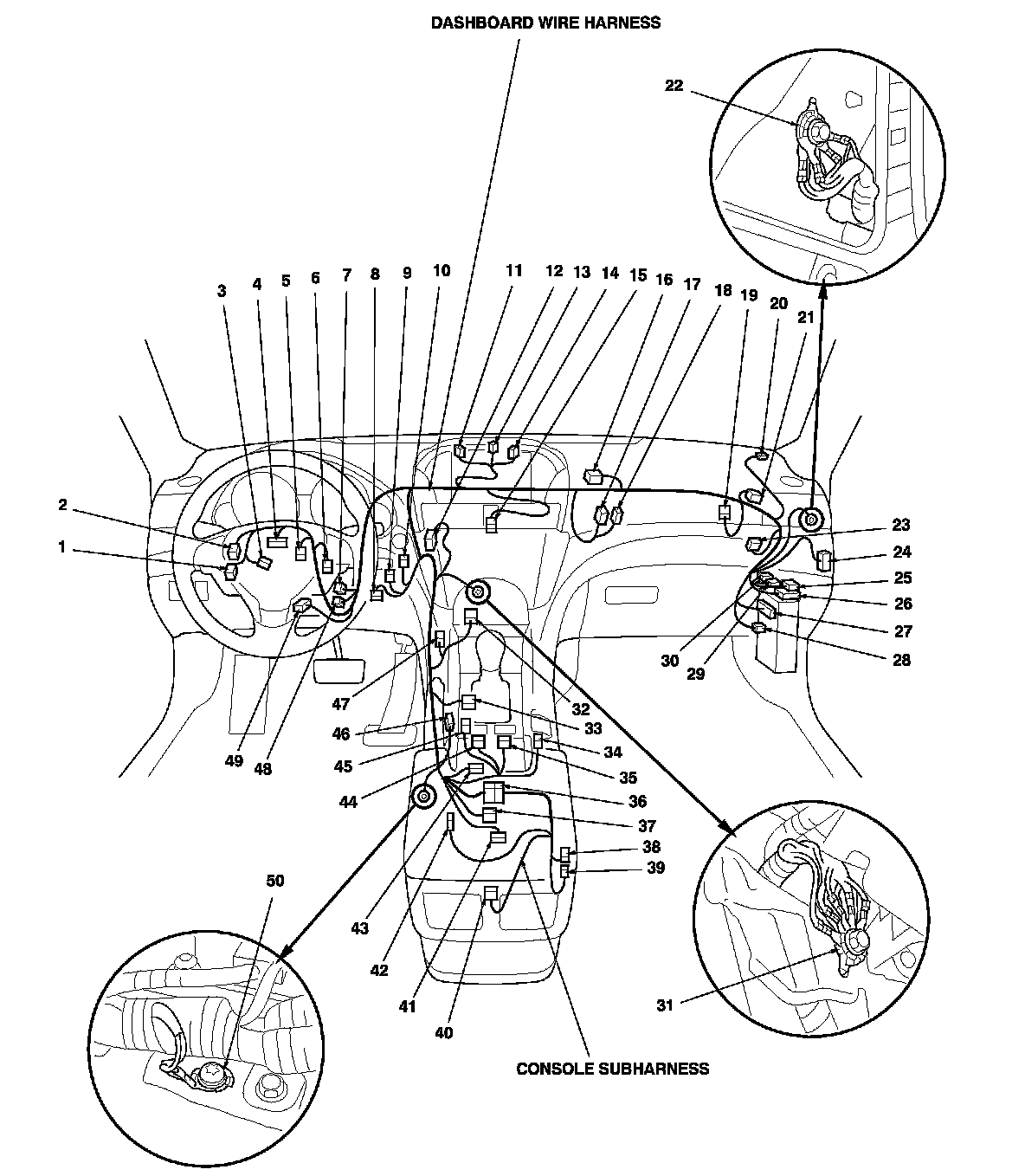

Dashboard Wire Harness (View of middle to passenger's side) and Console Subharness Connector and Harness Locations

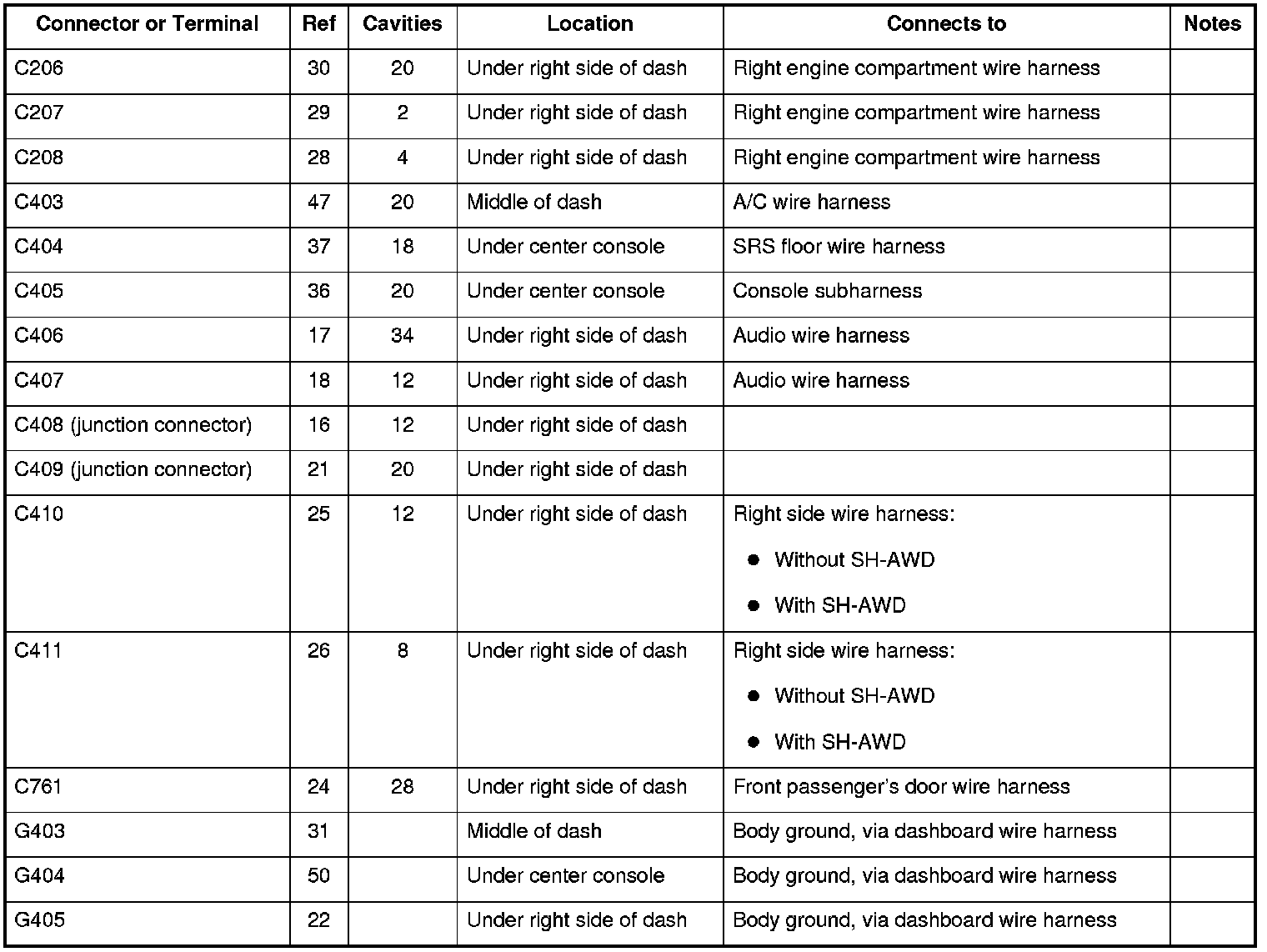

Dashboard Wire Harness (View of middle to passenger's side)














Dashboard Wire Harness (View of middle to passenger's side)

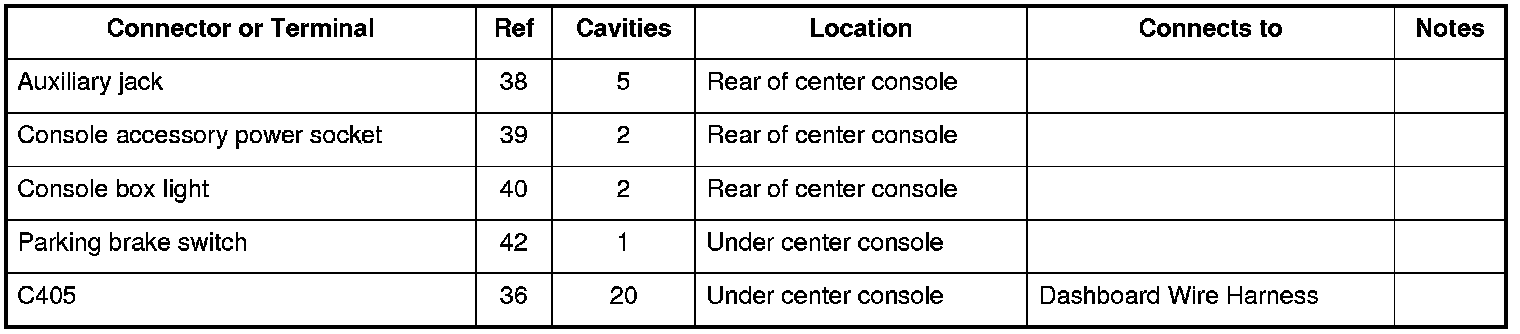

Console Subharness
