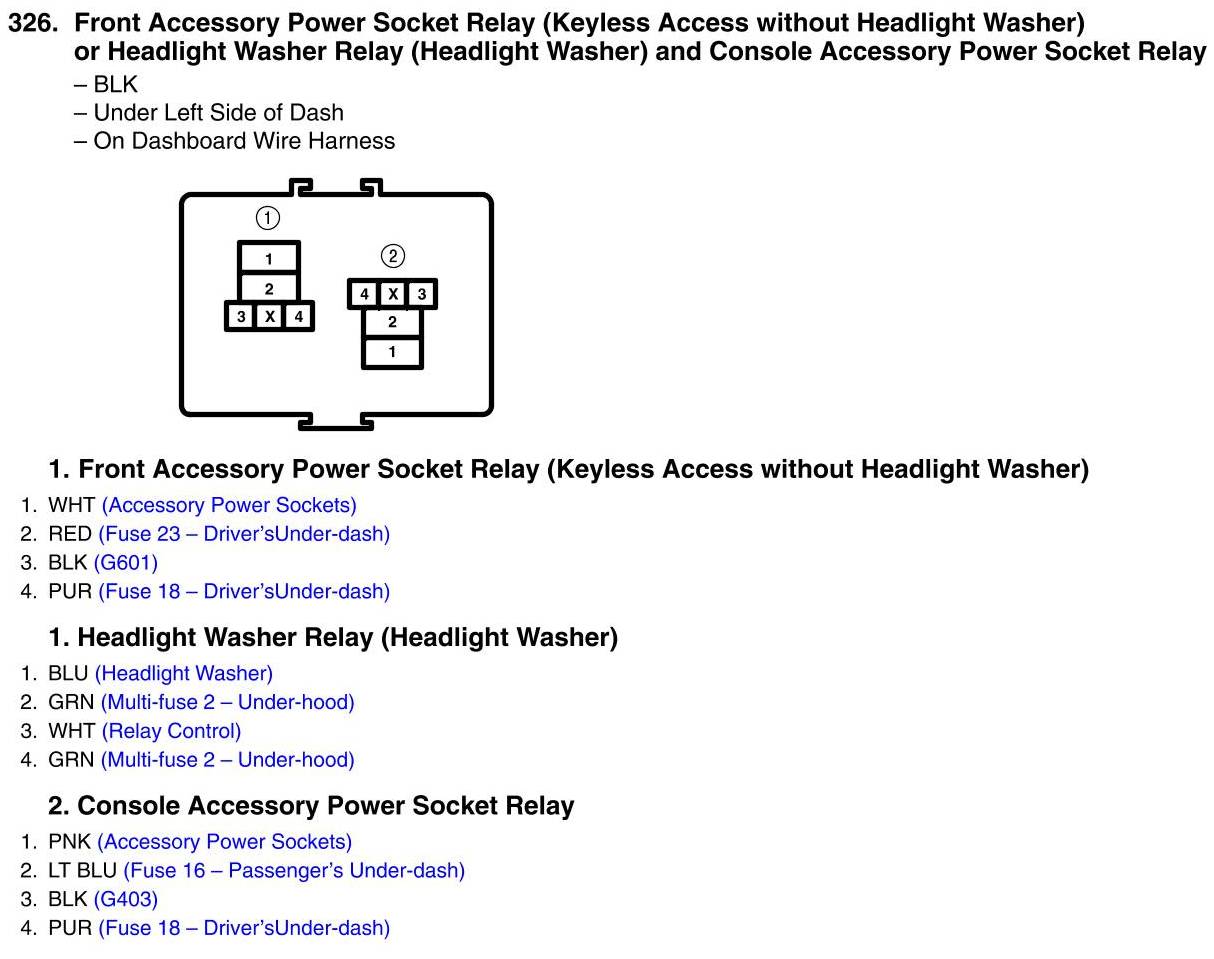

Front Accessory Power Socket Relay Or Headlight Washer Relay And Console Accessory Power Socket Relay Connector View
Front Accessory Power Socket Relay Or Headlight Washer Relay And Console Accessory Power Socket Relay Connector View
