Home >> Acura >> 2009 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 44 - Driver's Power Lumbar Support Motor Connector View

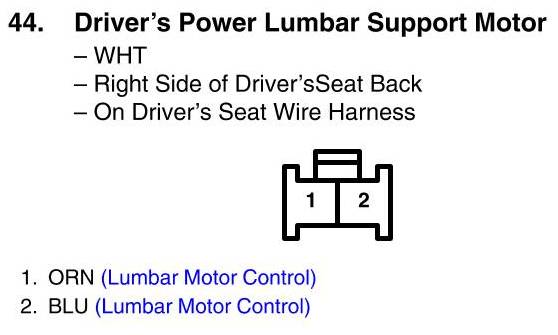

View 44 - Driver's Power Lumbar Support Motor Connector View
