Home >> Acura >> 2009 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 362 - IG1 Relay and IG2 Relay Connector View (Remote Starting System (Acura Accessory: without Keyless Access))

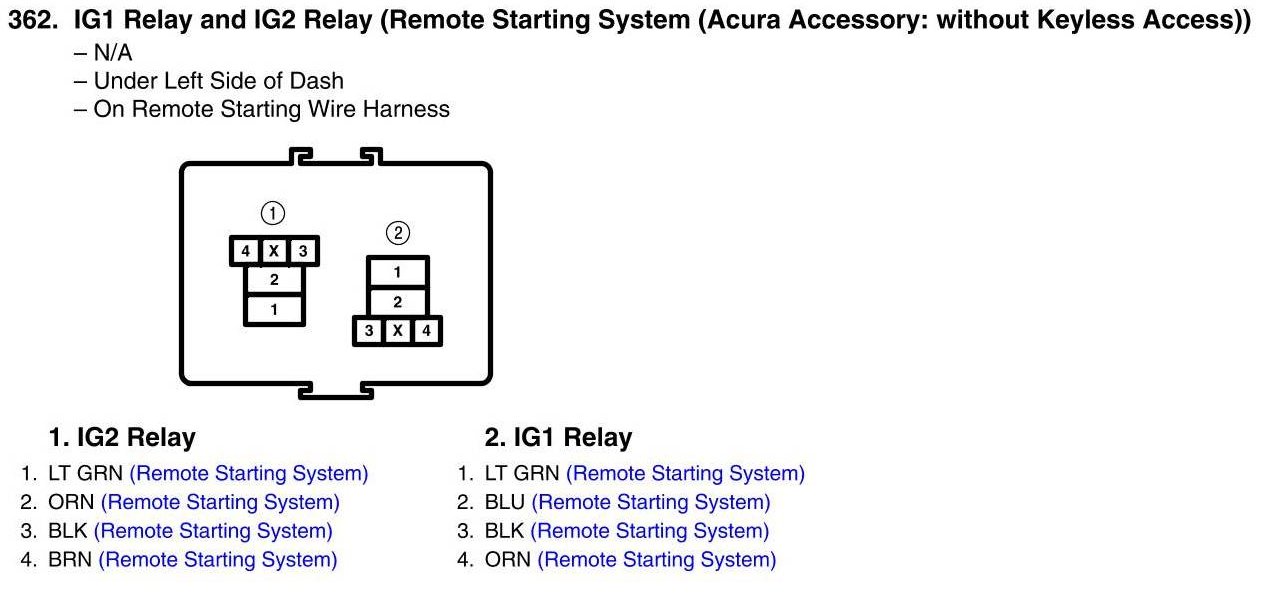

View 362 - IG1 Relay and IG2 Relay Connector View (Remote Starting System (Acura Accessory: without Keyless Access))
