Home >> Acura >> 2009 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 174 - Paddle Shifter - (Downshift Switch) Connector View (A/T)

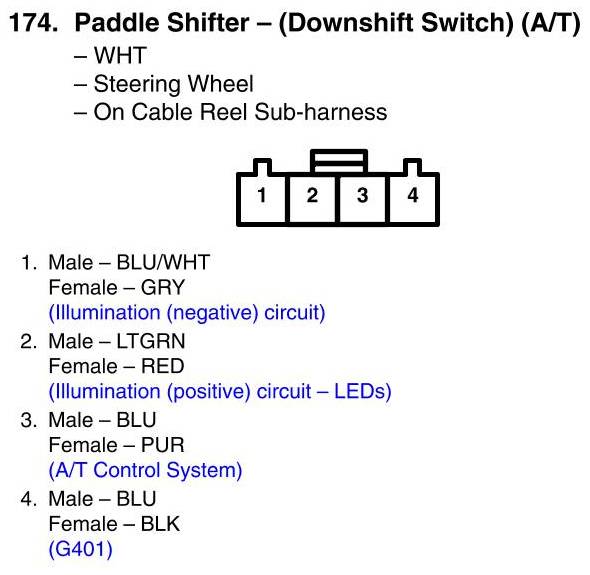

View 174 - Paddle Shifter - (Downshift Switch) Connector View (A/T)
