Home >> Acura >> 2009 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 171 - Humidity/In-Car Temperature Sensor Connector View

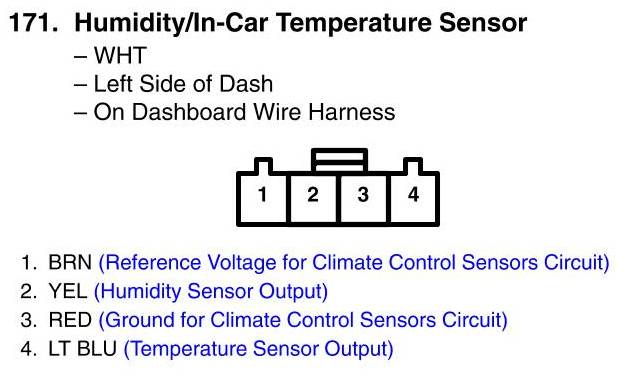

View 171 - Humidity/In-Car Temperature Sensor Connector View
