Rear Seat Armrest Replacement

Rear Seat Armrest Replacement

NOTE: Take care not to tear or damage the seat covers.

1. Remove the rear seat-back. Rear Seat Removal/Installation

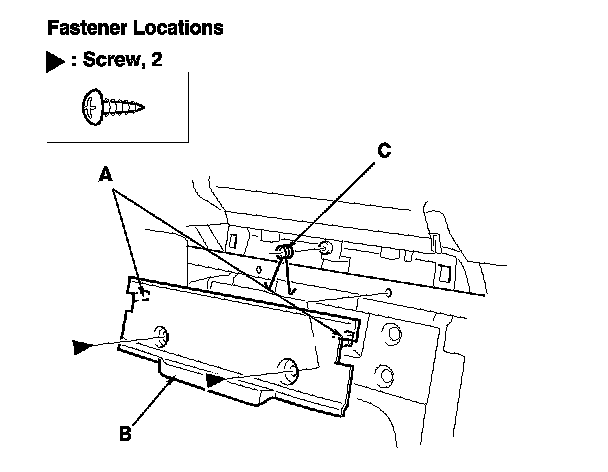

2. Remove the screws, and detach the hooks (A), then remove the upper cover (B). Remove the spring (C).

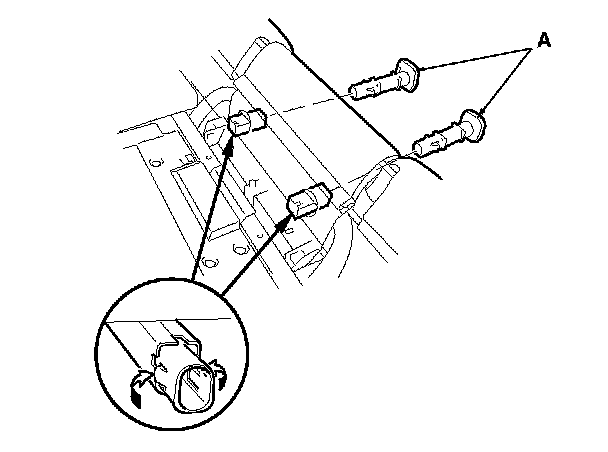

3. Pinch the tabs on the ends of the head restraint guides (A), and remove them from the seat-back.

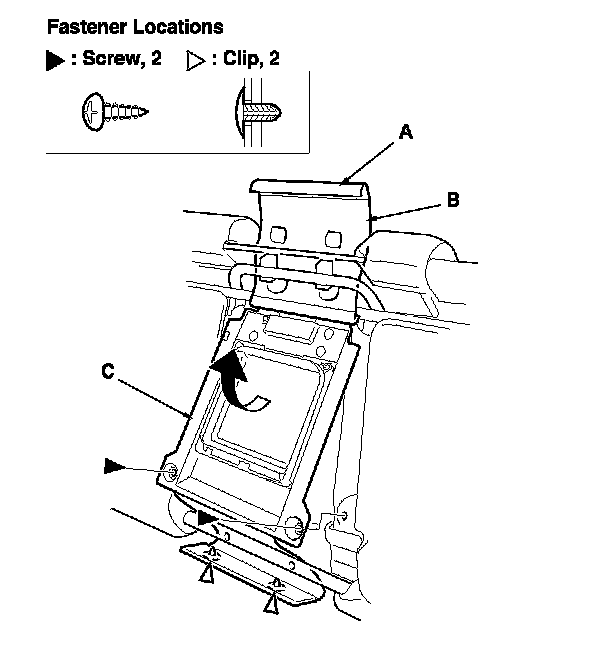

4. Release the Velcro fastener (A), then pull back the upper flap (B). Remove the screws and the clips, then remove the trunk pass-through lid (C).

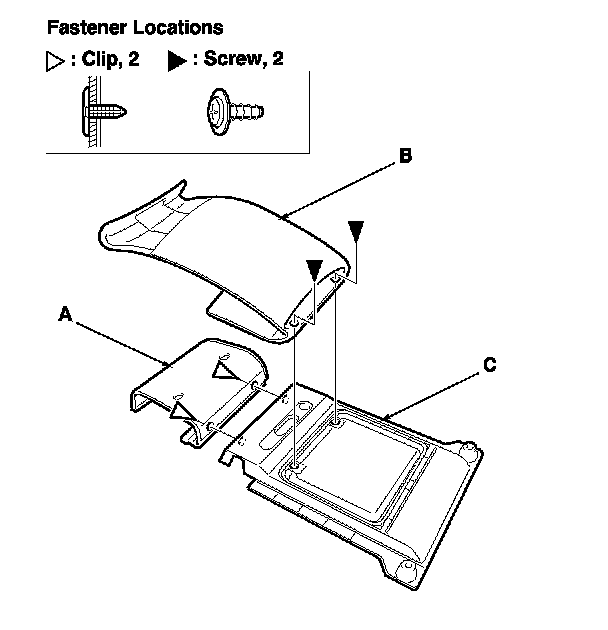

5. If necessary, remove the clips and the screws, then remove the rear seat-back upper flap (A) and the armrest cover (B) from the trunk pass-through cover (C).

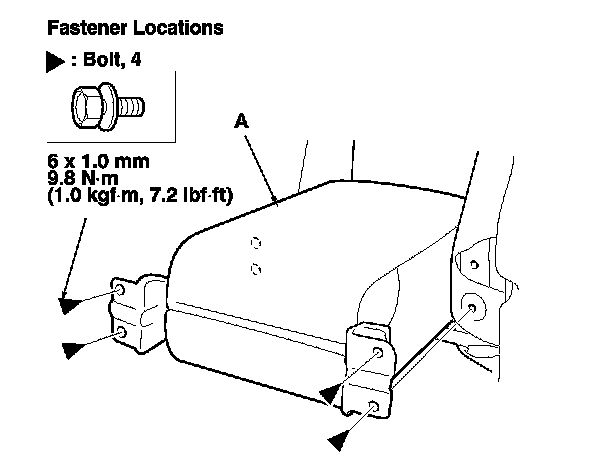

6. Remove the bolts, then remove the armrest (A) from the seat-back frame.

7. Install the armrest in the reverse order of removal.
