Front Seat Lumbar Support Replacement

Front Seat Lumbar Support Replacement

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE:

- Put on gloves to protect your hands.

- Take care not to kink the cable.

- Take care not to tear or damage the seat covers.

1. Remove the front seat. Front Seat Removal/Installation

2. Remove the seat-back panel. Front Seat-Back Cover Replacement

3. Release the hook strips as needed, then turn over the seat-back. Front Seat-Back Cover Replacement

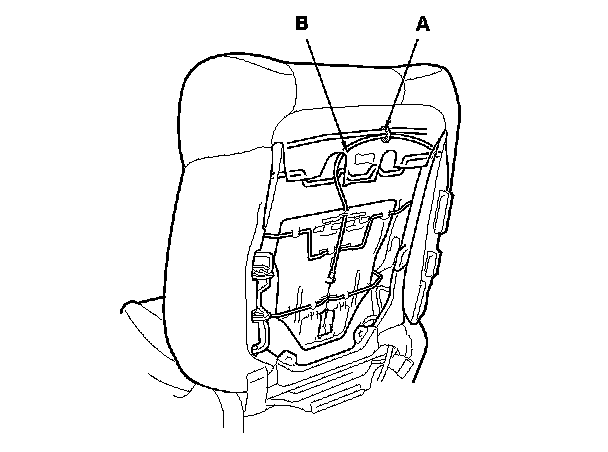

4. Remove the cable band (A) fastening the lumbar support cable (B).

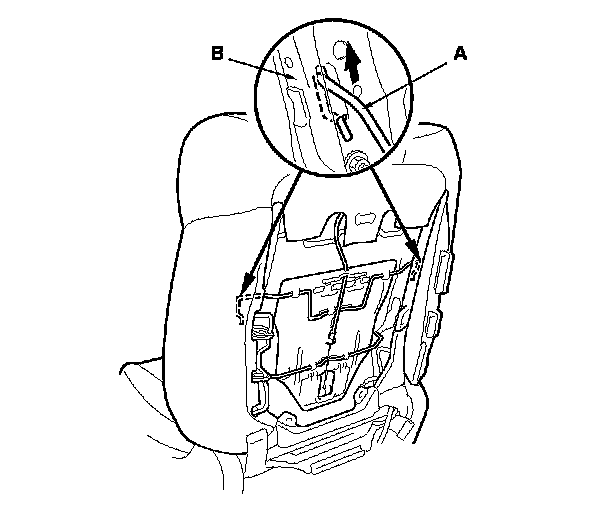

5. Remove the upper wire (A) from both seat-back side frames (B) inside the seat-back.

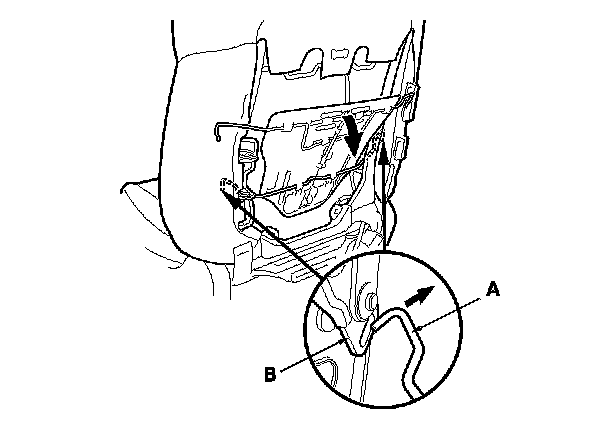

6. Release the lower wires (A) from both active head restraint links (B) inside the seat-back.

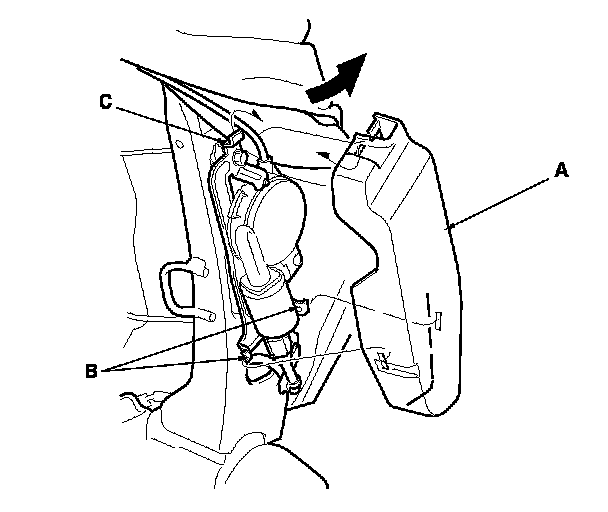

7. Remove the lumbar support motor cover (A).
-1 Release the cover from the lower hooks (B).
-2 Pull the cover upward to release it from the upper hook (C).

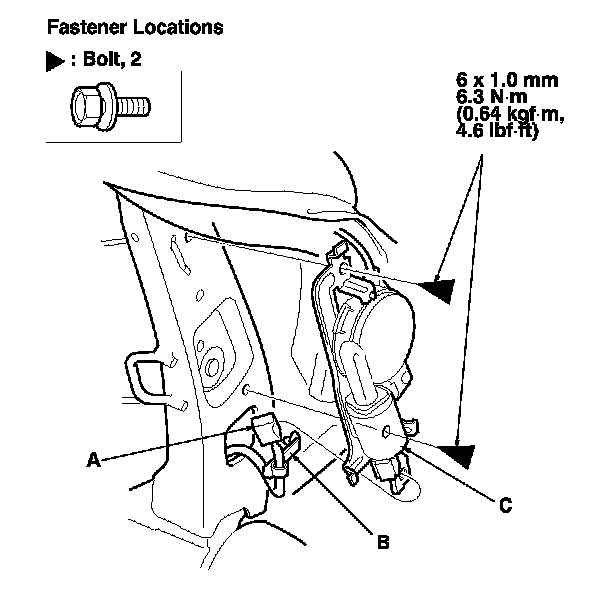

8. Disconnect the lumbar support motor connector (A), and detach the harness clip (B). Remove the bolts, then remove the lumbar support motor (C).

9. Install the lumbar support in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.

- To prevent wrinkles when installing a seat-back cover, make sure the material is stretched evenly over the pad before securing the hook strips.

- Replace the back panel clips with new ones.
