Moonroof Switch Test/Replacement

Moonroof Switch Test/Replacement

1. Remove the roof console. Testing and Inspection

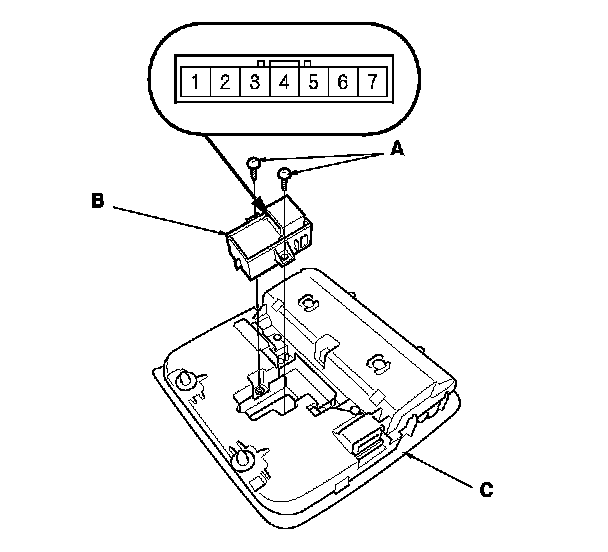

2. Remove the two screws (A) then pull out the moonroof switch (B) from the roof console (C).

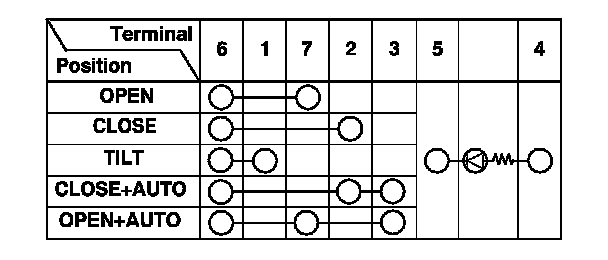

3. Check for continuity between the terminals in each switch position according to the table.

4. If the continuity is not as specified, replace the switch.

5. Install the switch and light in the reverse order of removal.
