Sunroof / Moonroof: Service and Repair

Moonroof Glass Replacement

1. Close the glass fully.

2. Slide the sunshade all the way back.

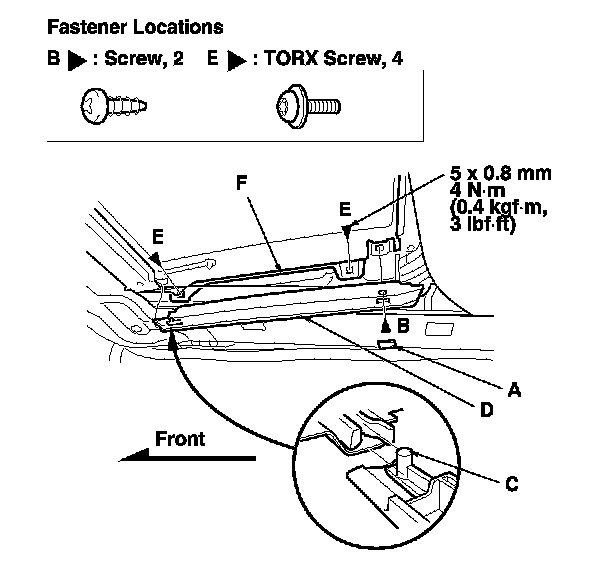

3. Pry out the cap (A). Remove the screw (B), and release the guide pin (C), then remove the bracket cover (D). Repeat on the opposite side. Remove the screws (E) with a TORX T25 bit from the glass brackets (F) on both sides.

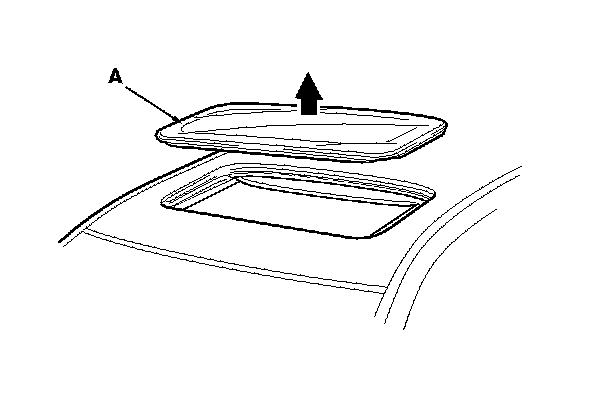

4. Remove the glass (A) by lifting it up. Do not damage the roof panel.

5. Install the glass in the reverse order of removal, then do these items:
- Do the glass position alignment procedure. Adjustments

- Reset the moonroof control unit. Programming and Relearning

6. Check for water leaks. Adjustments Use free-flowing water from a hose without a nozzle. Do not use high-pressure water.
NOTE: It is normal for some water to seep past the moonroof into the moonroof frame, and exit through the drains.
