Sunroof / Moonroof: Adjustments

Moonroof Glass Position Adjustment

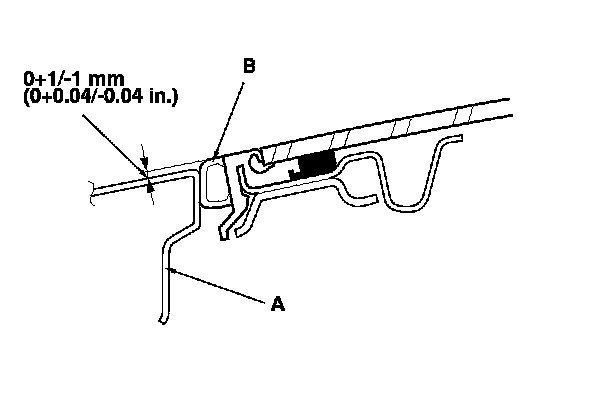

The roof panel (A) should be even with the glass weatherstrip (B), to within 0+1/-1 mm (0+0.04/-0.04 in.) all the way around. If not, make the following adjustment:






1. Remove the bracket cover. Service and Repair

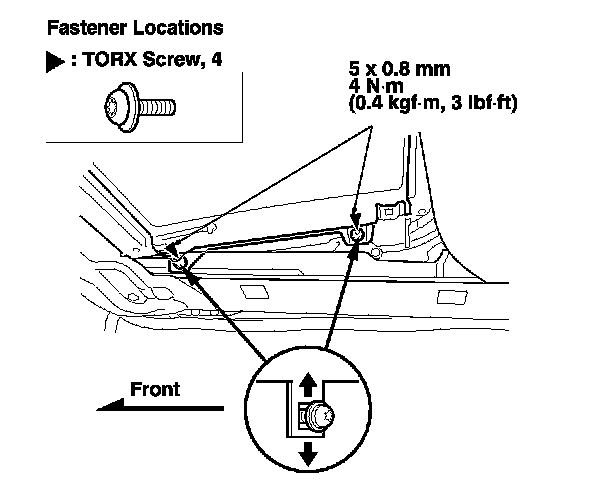

2. Adjust the glass (A).
-1 Slightly loosen the screws with a TORX T25 bit.
-2 Move the glass up or down.
-3 Tighten all bolts securely.

3. If necessary, repeat on the opposite side.

4. Reset the moonroof control unit. Programming and Relearning
