C-Pillar Outer Trim Replacement




C-Pillar Outer Trim Replacement

Special Tools Required

- KTC trim tool set SOJATP2014*
*Available through the Acura Tool and Equipment Program.

NOTE:

- Take care not to scratch the trim or the body.

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Open the rear door.

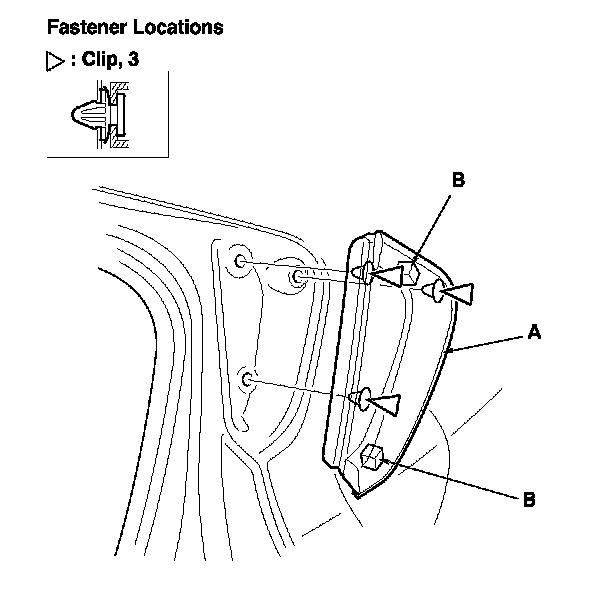

2. Pry up on the edge of the C-pillar outer trim (A) with a trim tool to detach the clips, then remove the trim.

3. Install the trim in the reverse order of removal, and note these items:
- Make sure you cannot see the EPT foam (B) from outside.

- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
