Interior Trim Removal/Installation - Front Door Sill Area

Interior Trim Removal/Installation - Front Door Sill Area

Special Tools Required

- KTC trim tool set SOJATP2014*
*Available through the Acura Tool and Equipment Program.

Front Door Sill Area

NOTE:

- Put on gloves to protect your hands.

- Take care not to bend or scratch the trim or the panels.

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

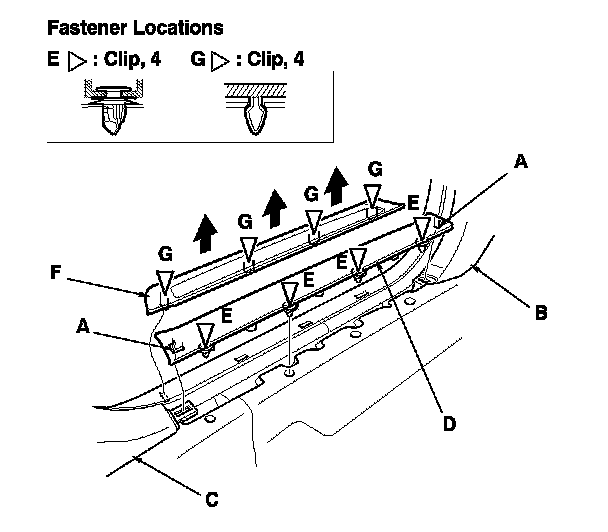

1. Detach the hooks (A) from the kick panel (B) and the B-pillar lower trim (C), and pull the front door sill trim (D) up by hand to detach the clips (E), then remove it.

2. If necessary, pull the front side outer trim (F) up to detach the clips (G), then remove the trim.






3. Remove the driver's kick panel (A) or the passenger's kick panel (B).
-1 Pull out the door opening seal (C) as needed from the kick panel hooks (D).
-2 Pull the kick panel back by hand to detach the clips, then remove it.

4. Remove the B-pillar lower trim. Interior Trim Removal/Installation - B-Pillar Upper/Lower Trim

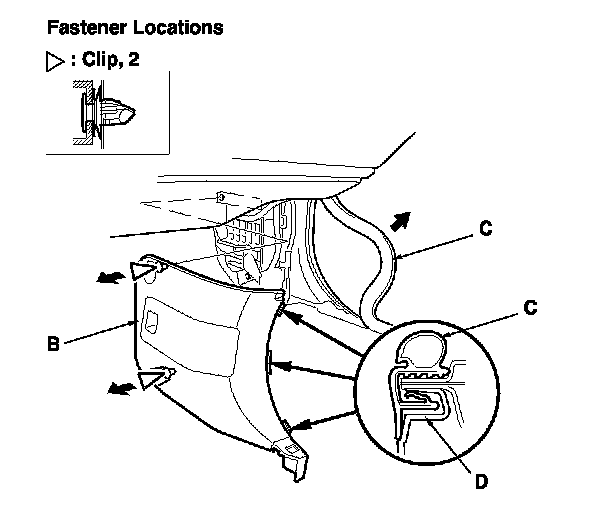

Driver's side

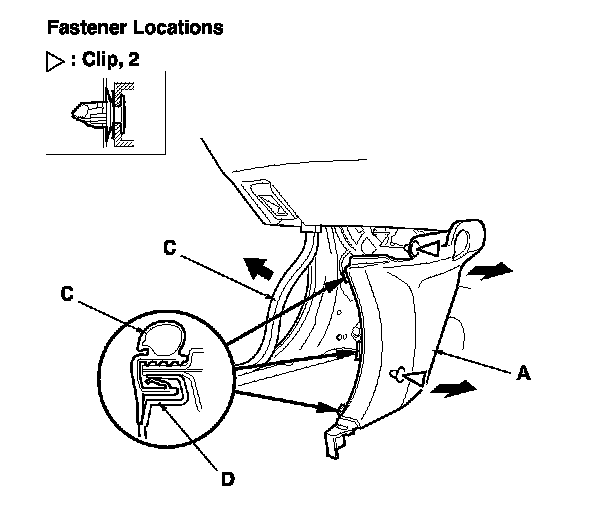

Passenger's side

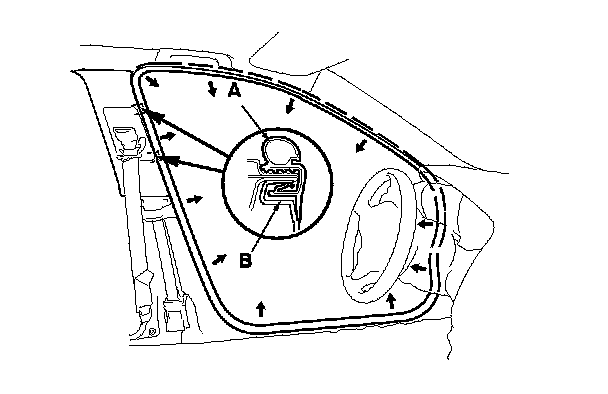

5. Pull out the front door opening seal (A) from the trim hooks (B) around the front door opening flange, then remove the seal.

6. Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips and the hooks into place securely.
