Passenger's Dashboard Undercover Removal/Installation

Passenger's Dashboard Undercover Removal/Installation

Special Tools Required

- KTC trim tool set SOJATP2014*
*Available through the Acura Tool and Equipment Program.

NOTE:

- Take care not to scratch the dashboard or its related parts.

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

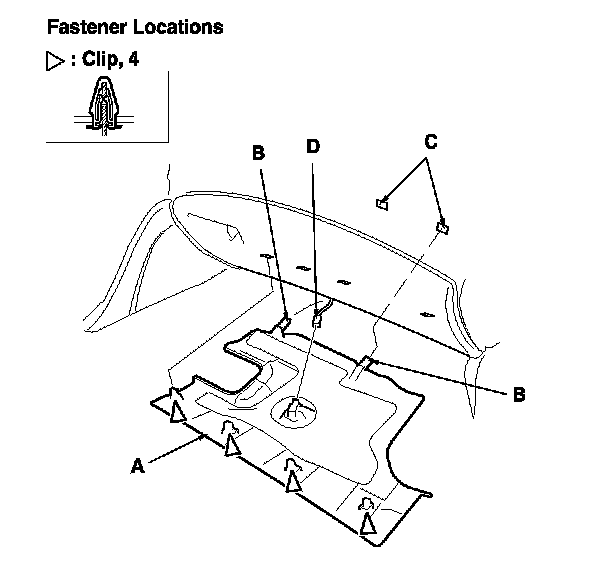

1. Remove the passenger's dashboard undercover (A).
-1 Gently pull down the rear edge to detach the clips.
-2 Pull the undercover away to release the pins (B) from the brackets (C).
-3 Disconnect the front passenger's footwell light connector (D).

2. Install the undercover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.

- Make sure footwell light connector is plugged in properly.

- Make sure the pins are installed securely in the brackets.
